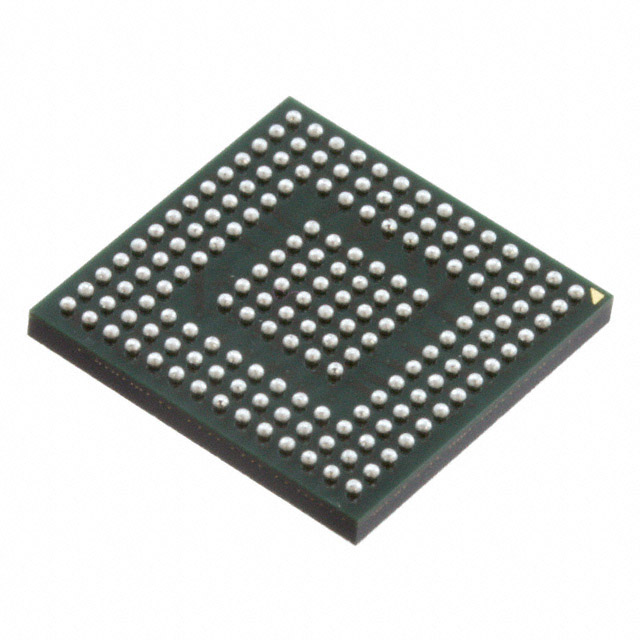

ADSP-BF512KBCZ-4F4
IC DSP 16/32B 400MHZ 168CSBGAManufacturer: Analog Devices Inc.
Categories: DSP (Digital Signal Processors)
Quality Control: Learn More
Analog Devices Inc. Blackfin® ADSP-BF512KBCZ-4F4 is a 16/32-bit fixed-point Digital Signal Processor operating at 400MHz. This component features 116kB of on-chip RAM and 4Mbit of embedded FLASH non-volatile memory. The ADSP-BF512KBCZ-4F4 supports multiple communication interfaces including I2C, PPI, SPI, SPORT, and UART/USART. It is housed in a 168-CSPBGA (12x12) package and is designed for surface mounting. Core voltage is 1.30V, with I/O voltages configurable at 1.8V, 2.5V, or 3.3V. The operating temperature range is 0°C to 70°C (TA). This processor is utilized in industrial control, automotive infotainment, and consumer electronics applications.
Additional Information
Series: Blackfin®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 168-LFBGA, CSPBGA |
| Mounting Type | Surface Mount |
| Interface | I2C, PPI, SPI, SPORT, UART/USART |
| Type | Fixed Point |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Non-Volatile Memory | FLASH (4Mbit) |
| On-Chip RAM | 116kB |
| Voltage - I/O | 1.8V, 2.5V, 3.3V |
| Voltage - Core | 1.30V |
| Clock Rate | 400MHz |
| Supplier Device Package | 168-CSPBGA (12x12) |
