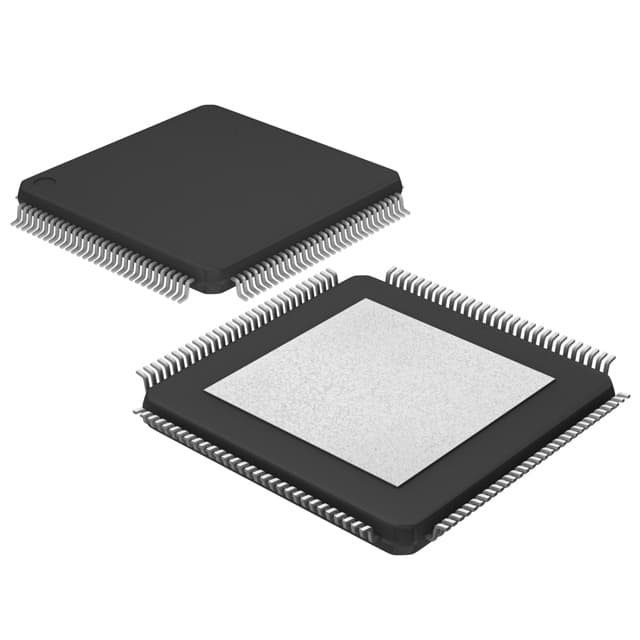

ADSP-BF506BSWZ-3F
IC DSP 400MHZ 1.4V 120LQFPManufacturer: Analog Devices Inc.
Categories: DSP (Digital Signal Processors)
Quality Control: Learn More
Analog Devices Inc. Blackfin® ADSP-BF506BSWZ-3F is a 300MHz fixed-point Digital Signal Processor. This device features 68kB of on-chip RAM and includes 16MB of non-volatile FLASH memory. The ADSP-BF506BSWZ-3F offers a comprehensive set of peripherals including CAN, EBI/EMI, I2C, IrDA, PPI, SPI, SPORT, and UART/USART interfaces. It operates with a core voltage of 1.29V and an I/O voltage of 3.30V. Packaged in a 120-LQFP Exposed Pad (14x14) for surface mounting, this component is designed for operation across an industrial temperature range of -40°C to 85°C. Applications for this processor are found in industrial automation, automotive systems, and consumer electronics.
Additional Information
Series: Blackfin®RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDownload Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 120-LQFP Exposed Pad |
| Mounting Type | Surface Mount |
| Interface | CAN, EBI/EMI, I2C, IrDA, PPI, SPI, SPORT, UART/USART |
| Type | Fixed Point |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Non-Volatile Memory | FLASH (16MB) |
| On-Chip RAM | 68kB |
| Voltage - I/O | 3.30V |
| Voltage - Core | 1.29V |
| Clock Rate | 300MHz |
| Supplier Device Package | 120-LQFP-EP (14x14) |
