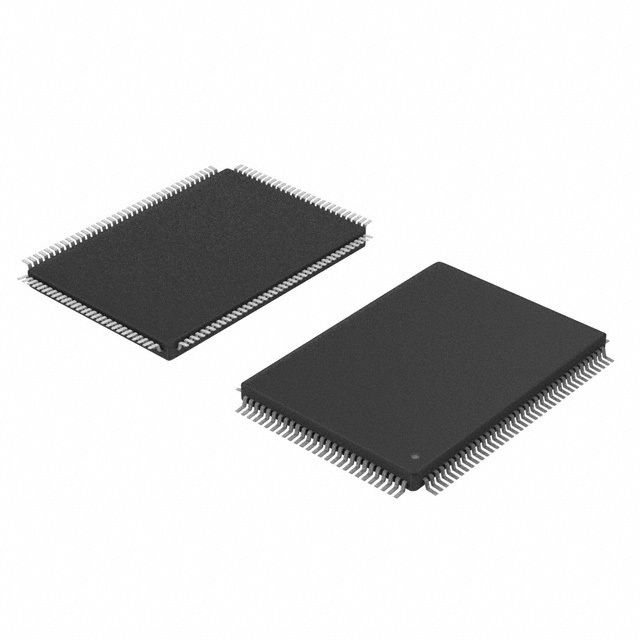

ADSP-2181BST-115
IC DSP CONTROLLER 16BIT 128TQFPManufacturer: Analog Devices Inc.
Categories: DSP (Digital Signal Processors)
Quality Control: Learn More
Analog Devices Inc. ADSP-2181BST-115 is a fixed-point Digital Signal Processor (DSP) controller from the ADSP-21xx series. This component features a 16-bit architecture and operates at a clock rate of 28.8MHz. It includes 80kB of on-chip RAM and requires external non-volatile memory. The ADSP-2181BST-115 offers a Synchronous Serial Port (SSP) interface for high-speed data transfer. Designed for surface mount applications, it is packaged in a 128-TQFP (14x20). The device operates with a core voltage of 5.00V and an I/O voltage of 5.00V, within an operating temperature range of -40°C to 85°C. This DSP is commonly utilized in industrial automation, medical imaging, and audio processing systems.
Additional Information
Series: ADSP-21xxRoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BagDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bag |
| Package / Case | 128-LQFP |
| Mounting Type | Surface Mount |
| Interface | Synchronous Serial Port (SSP) |
| Type | Fixed Point |
| Operating Temperature | -40°C ~ 85°C |
| Non-Volatile Memory | External |
| On-Chip RAM | 80kB |
| Voltage - I/O | 5.00V |
| Voltage - Core | 5.00V |
| Clock Rate | 28.8MHz |
| Supplier Device Package | 128-TQFP (14x20) |
