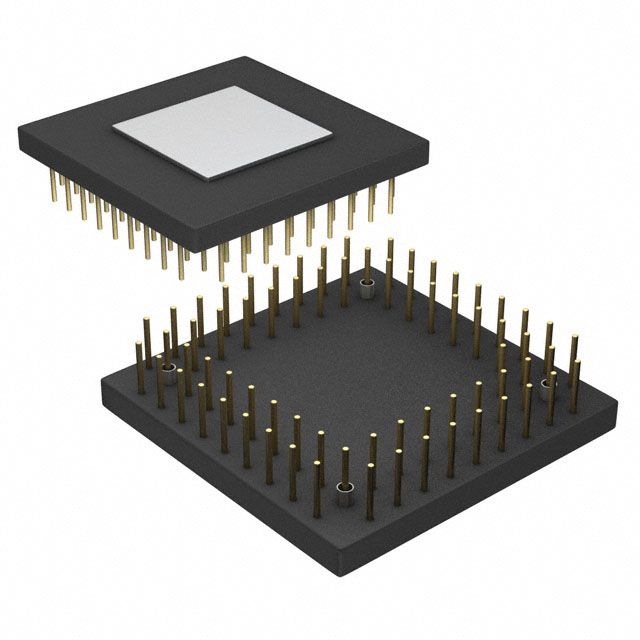

ADSP-2101BG-100
IC DSP CONTROLLER 16BIT 68PGAManufacturer: Analog Devices Inc.
Categories: DSP (Digital Signal Processors)
Quality Control: Learn More
Analog Devices Inc. ADSP-21xx series DSP controller, part number ADSP-2101BG-100, is a 16-bit fixed-point digital signal processor. This component features a 25MHz clock rate and a 6kB on-chip RAM. The ADSP-2101BG-100 offers a Synchronous Serial Port (SSP) interface for data communication. Designed for through-hole mounting, it utilizes a 68-PGA package. This device operates with a 5.00V core voltage and 5.00V I/O voltage, and is rated for an operating temperature range of -40°C to 85°C. Non-volatile memory is managed externally. This processor is suitable for applications in telecommunications, industrial control, and audio processing.
Additional Information
Series: ADSP-21xxRoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 68-BCPGA |
| Mounting Type | Through Hole |
| Interface | Synchronous Serial Port (SSP) |
| Type | Fixed Point |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Non-Volatile Memory | External |
| On-Chip RAM | 6kB |
| Voltage - I/O | 5.00V |
| Voltage - Core | 5.00V |
| Clock Rate | 25MHz |
| Supplier Device Package | 68-PGA (27.89x27.89) |
