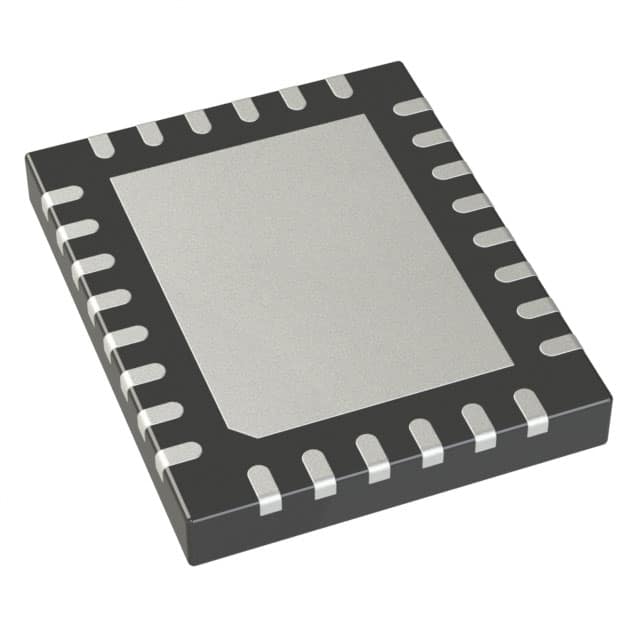

LTC2870HUFD#TRPBF
IC TRANSCEIVER FULL 1/1 28QFNManufacturer: Analog Devices Inc.
Categories: Drivers, Receivers, Transceivers
Quality Control: Learn More
Analog Devices Inc. LTC2870HUFD-TRPBF is a versatile 1/1 transceiver designed for robust communication protocols. This component supports both RS232 and RS485 standards, offering a flexible solution for diverse networking requirements. Featuring a full-duplex configuration, it enables simultaneous transmission and reception of data.
The LTC2870HUFD-TRPBF operates with a supply voltage range of 3V to 5.5V and achieves data rates up to 20Mbps. Its 1/1 driver/receiver configuration, coupled with 130mV receiver hysteresis, ensures reliable signal integrity. The device is housed in a 28-WFQFN exposed pad package (4x5mm) and utilizes surface mount technology for efficient integration. This component is well-suited for applications in industrial automation, telecommunications, and medical equipment where reliable serial communication is critical. The Tape & Reel (TR) packaging facilitates high-volume manufacturing processes. The operating temperature range is -40°C to 125°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 28-WFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Type | Transceiver |
| Operating Temperature | -40°C ~ 125°C |
| Voltage - Supply | 3V ~ 5.5V |
| Number of Drivers/Receivers | 1/1 |
| Data Rate | 20Mbps |
| Protocol | RS232, RS485 |
| Supplier Device Package | 28-QFN (4x5) |
| Receiver Hysteresis | 130 mV |
| Duplex | Full |
