LTC2855IDE#PBF
IC TRANSCEIVER FULL 1/1 12DFNManufacturer: Analog Devices Inc.
Categories: Drivers, Receivers, Transceivers
Quality Control: Learn More

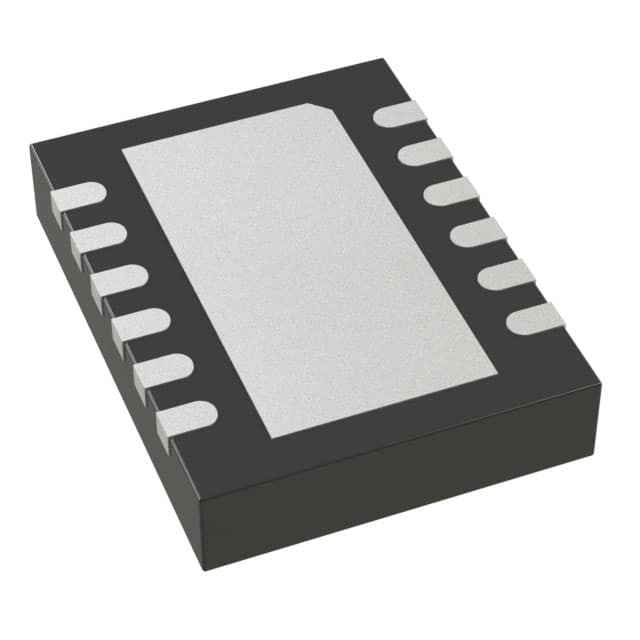

The Analog Devices Inc. LTC2855IDE-PBF is a 1/1 full transceiver designed for RS422 and RS485 communication protocols. This component features a data rate of 20Mbps and operates within a supply voltage range of 3V to 3.6V. It is housed in a compact 12-DFN (4x3) exposed pad package, suitable for surface mount applications. The transceiver offers a receiver hysteresis of 25 mV for enhanced signal integrity and operates across an industrial temperature range of -40°C to 85°C. The LTC2855IDE-PBF is utilized in various industrial automation, communication systems, and networking applications where robust serial data transmission is critical.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 12-WFDFN Exposed Pad |
| Mounting Type | Surface Mount |
| Type | Transceiver |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 3V ~ 3.6V |
| Number of Drivers/Receivers | 1/1 |
| Data Rate | 20Mbps |
| Protocol | RS422, RS485 |
| Supplier Device Package | 12-DFN (4x3) |
| Receiver Hysteresis | 25 mV |
| Duplex | Full |
