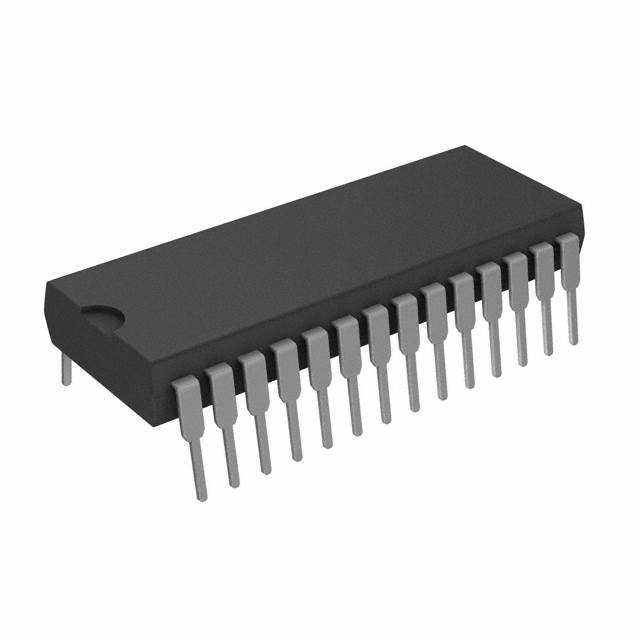

LTC1345CNW#PBF
IC TRANSCEIVER FULL 2/2 28DIPManufacturer: Analog Devices Inc.
Categories: Drivers, Receivers, Transceivers
Quality Control: Learn More
Analog Devices Inc. LTC1345CNW-PBF is a transceiver component designed for robust communication interfaces. This device offers a full duplex configuration with 2 drivers and 3 receivers, operating at data rates up to 10MBd. It supports a wide supply voltage range of 4.75V to 5.25V and features 50mV of receiver hysteresis for improved noise immunity. The LTC1345CNW-PBF is packaged in a 28-pin dual in-line package (PDIP) with a 0.600" pitch, suitable for through-hole mounting. Its operating temperature range is from 0°C to 70°C. This component is commonly utilized in industrial automation and telecommunications applications requiring reliable serial data transmission.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 13 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 28-DIP (0.600"", 15.24mm) |
| Mounting Type | Through Hole |
| Type | Transceiver |
| Operating Temperature | 0°C ~ 70°C |
| Voltage - Supply | 4.75V ~ 5.25V |
| Number of Drivers/Receivers | 2/3 |
| Data Rate | 10MBd |
| Protocol | - |
| Supplier Device Package | 28-PDIP |
| Receiver Hysteresis | 50 mV |
| Duplex | Full |
