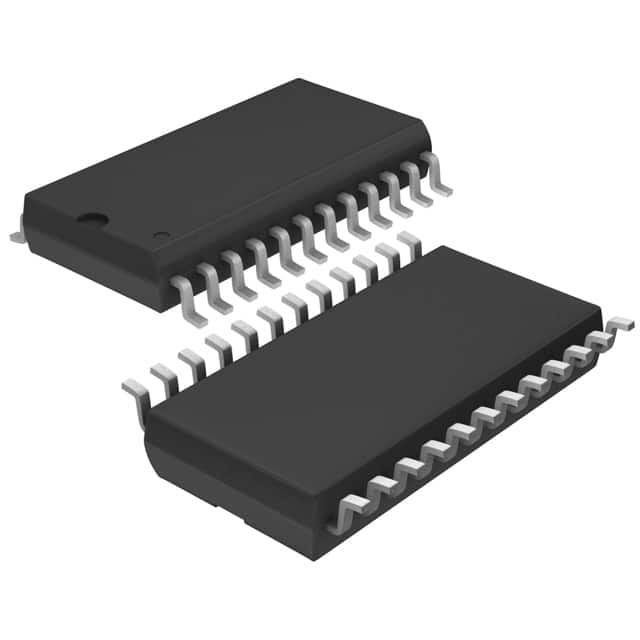

LTC1335ISW#TRPBF
IC TRANSCEIVER FULL 6/6 24SOICManufacturer: Analog Devices Inc.
Categories: Drivers, Receivers, Transceivers
Quality Control: Learn More
Analog Devices Inc. LTC1335ISW-TRPBF is a versatile transceiver featuring 6 drivers and 6 receivers, capable of supporting both RS232 and RS485 communication protocols. This full-duplex component operates with a supply voltage range of 4.75V to 5.25V and offers a data rate of up to 120KBd. Designed for surface mount applications, it is housed in a 24-SOIC package, measuring 24-SOIC (0.295"", 7.50mm Width). The operating temperature range is -40°C to 85°C, ensuring reliability in demanding environmental conditions. Receiver hysteresis is specified at 70 mV. This component is frequently utilized in industrial automation, telecommunications infrastructure, and embedded system designs requiring robust serial communication interfaces. The product is supplied on a Tape & Reel (TR) for efficient automated assembly.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 24-SOIC (0.295"", 7.50mm Width) |
| Mounting Type | Surface Mount |
| Type | Transceiver |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 4.75V ~ 5.25V |
| Number of Drivers/Receivers | 6/6 |
| Data Rate | 120KBd |
| Protocol | RS232, RS485 |
| Supplier Device Package | 24-SOIC |
| Receiver Hysteresis | 70 mV |
| Duplex | Full |
