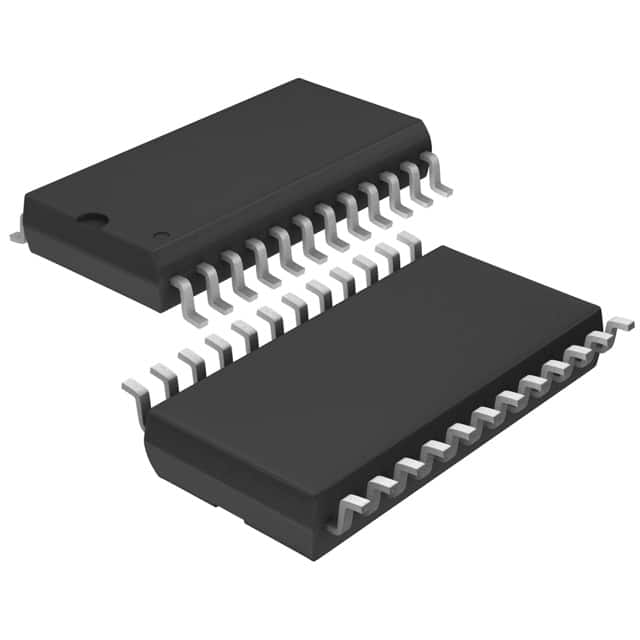

LTC1335CSW#TRPBF
IC TRANSCEIVER FULL 6/6 24SOICManufacturer: Analog Devices Inc.
Categories: Drivers, Receivers, Transceivers
Quality Control: Learn More
Analog Devices Inc. LTC1335CSW-TRPBF is a versatile transceiver IC offering simultaneous RS232 and RS485 communication capabilities. This component features a full duplex design with 6 drivers and 6 receivers, enabling robust, bidirectional data transfer. Operating from a 4.75V to 5.25V supply, it supports data rates up to 120KBd and is suitable for applications requiring mixed-protocol serial communication. The transceiver includes 70 mV of receiver hysteresis for improved noise immunity. Packaged in a 24-SOIC (0.295" width) surface-mount format, this device is supplied on tape and reel. Its dual-protocol support makes it ideal for industrial automation, telecommunications infrastructure, and test and measurement equipment. The LTC1335CSW-TRPBF operates within a 0°C to 70°C temperature range.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 24-SOIC (0.295"", 7.50mm Width) |
| Mounting Type | Surface Mount |
| Type | Transceiver |
| Operating Temperature | 0°C ~ 70°C |
| Voltage - Supply | 4.75V ~ 5.25V |
| Number of Drivers/Receivers | 6/6 |
| Data Rate | 120KBd |
| Protocol | RS232, RS485 |
| Supplier Device Package | 24-SOIC |
| Receiver Hysteresis | 70 mV |
| Duplex | Full |
