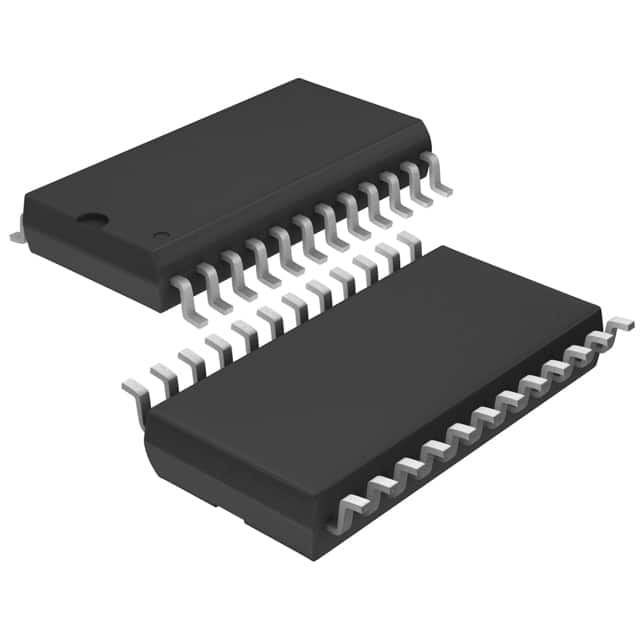

LTC1322CSW#TRPBF
IC TRANSCEIVER FULL 6/6 24SOICManufacturer: Analog Devices Inc.
Categories: Drivers, Receivers, Transceivers
Quality Control: Learn More
The Analog Devices Inc. LTC1322CSW-TRPBF is a full duplex transceiver featuring a 6-driver/6-receiver configuration. This component operates at 5V and supports the RS562 protocol. It is designed for surface mounting within a 24-SOIC package, measuring 24-SOIC (0.295", 7.50mm Width). The operating temperature range is 0°C to 70°C, and it includes 70mV of receiver hysteresis. This transceiver finds application in industrial automation and telecommunications systems. The part is supplied on tape and reel.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 24-SOIC (0.295"", 7.50mm Width) |
| Mounting Type | Surface Mount |
| Type | Transceiver |
| Operating Temperature | 0°C ~ 70°C |
| Voltage - Supply | 4.75V ~ 5.25V |
| Number of Drivers/Receivers | 6/6 |
| Data Rate | - |
| Protocol | RS562 |
| Supplier Device Package | 24-SOIC |
| Receiver Hysteresis | 70 mV |
| Duplex | Full |
