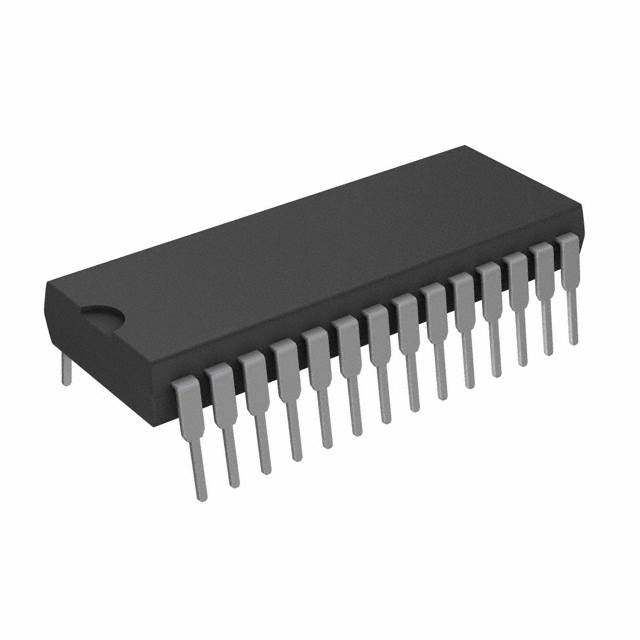

LT1341CNW#PBF
IC TRANSCEIVER FULL 3/5 28DIPManufacturer: Analog Devices Inc.
Categories: Drivers, Receivers, Transceivers
Quality Control: Learn More
Analog Devices Inc. LT1341CNW-PBF is a full duplex RS232 transceiver, featuring a 3 driver and 5 receiver configuration within a 28-pin PDIP package. This component is designed for robust communication interfaces, operating at data rates up to 250KBd. It supports a wide supply voltage range of 4.5V to 5.5V and maintains operation across a commercial temperature range of 0°C to 70°C. The through-hole mounting type and 28-DIP package facilitate straightforward board integration. Receiver hysteresis of 400mV ensures reliable signal reception. This transceiver is suitable for applications in industrial automation, test and measurement equipment, and legacy communication systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 28-DIP (0.600"", 15.24mm) |
| Mounting Type | Through Hole |
| Type | Transceiver |
| Operating Temperature | 0°C ~ 70°C |
| Voltage - Supply | 4.5V ~ 5.5V |
| Number of Drivers/Receivers | 3/5 |
| Data Rate | 250KBd |
| Protocol | RS232 |
| Supplier Device Package | 28-PDIP |
| Receiver Hysteresis | 400 mV |
| Duplex | Full |
