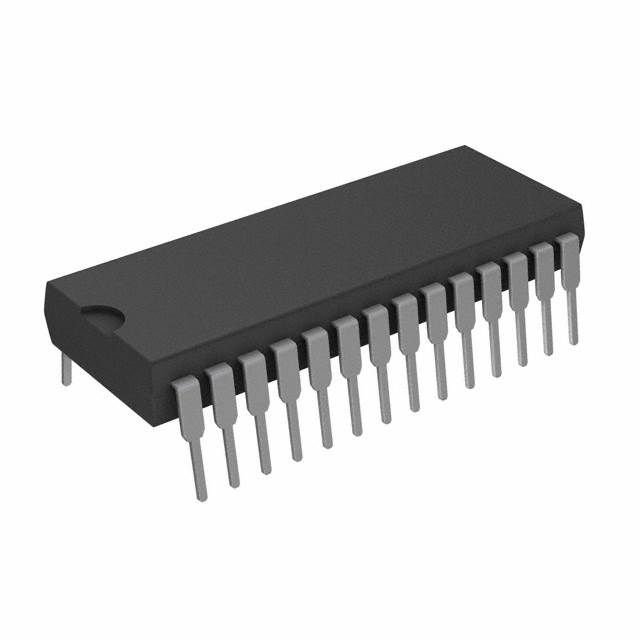

LT1330CNW#PBF
IC TRANSCEIVER FULL 3/5 28DIPManufacturer: Analog Devices Inc.
Categories: Drivers, Receivers, Transceivers
Quality Control: Learn More
The Analog Devices Inc. LT1330CNW-PBF is a full duplex RS232 transceiver featuring 3 drivers and 5 receivers. This component utilizes a 28-PDIP (0.600", 15.24mm) through-hole package, ideal for robust board-level integration. Operating within a 4.5V to 5.5V supply voltage range, it supports data rates up to 250 Kilo Baud. The device offers 400 mV of receiver hysteresis, contributing to signal integrity in noisy environments. Its operating temperature range is 0°C to 70°C. This transceiver finds application in industrial automation, telecommunications equipment, and general-purpose interface design.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 28-DIP (0.600"", 15.24mm) |
| Mounting Type | Through Hole |
| Type | Transceiver |
| Operating Temperature | 0°C ~ 70°C |
| Voltage - Supply | 4.5V ~ 5.5V |
| Number of Drivers/Receivers | 3/5 |
| Data Rate | 250KBd |
| Protocol | RS232 |
| Supplier Device Package | 28-PDIP |
| Receiver Hysteresis | 400 mV |
| Duplex | Full |
