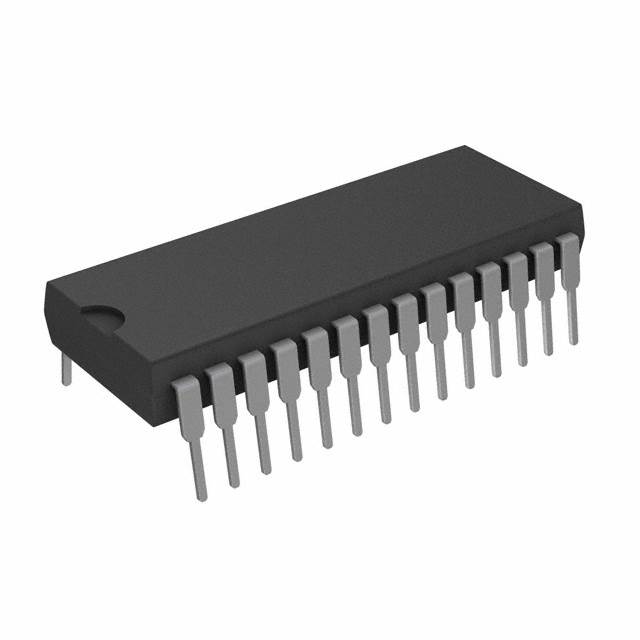

LT1136ACNW#PBF
IC TRANSCEIVER FULL 4/4 28DIPManufacturer: Analog Devices Inc.
Categories: Drivers, Receivers, Transceivers
Quality Control: Learn More
Analog Devices Inc. LT1136ACNW-PBF is a full RS232 transceiver featuring 4 drivers and 5 receivers. This component operates from a 4.5V to 5.5V supply and supports a data rate of 250KBd. It offers 400mV of receiver hysteresis for improved noise immunity. The LT1136ACNW-PBF is housed in a 28-pin Dual In-line Package (DIP) with a 0.600" pitch, suitable for through-hole mounting. Its operating temperature range is 0°C to 70°C. This transceiver is commonly utilized in industrial automation, telecommunications, and test and measurement equipment.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 28-DIP (0.600"", 15.24mm) |
| Mounting Type | Through Hole |
| Type | Transceiver |
| Operating Temperature | 0°C ~ 70°C |
| Voltage - Supply | 4.5V ~ 5.5V |
| Number of Drivers/Receivers | 4/5 |
| Data Rate | 250KBd |
| Protocol | RS232 |
| Supplier Device Package | 28-PDIP |
| Receiver Hysteresis | 400 mV |
| Duplex | Full |
