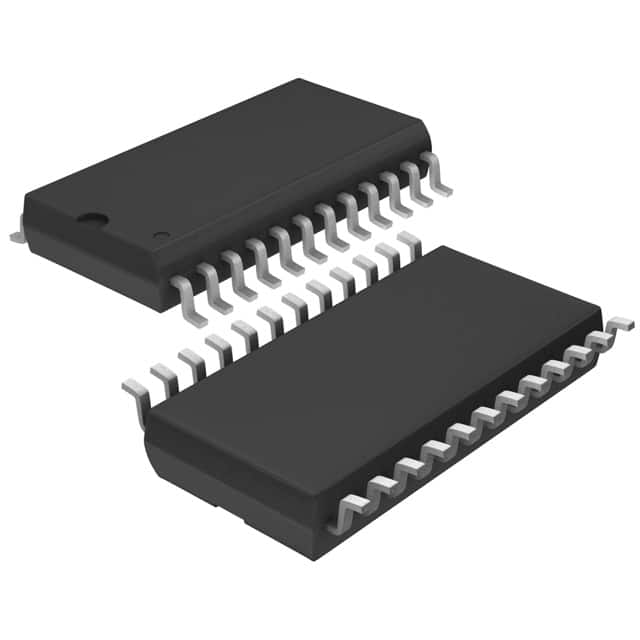

LT1133AISW#TRPBF
IC TRANSCEIVER FULL 3/5 24SOICManufacturer: Analog Devices Inc.
Categories: Drivers, Receivers, Transceivers
Quality Control: Learn More
Analog Devices Inc. LT1133AISW-TRPBF is a full RS232 transceiver featuring 3 drivers and 5 receivers. This surface mount component, packaged in a 24-SOIC (0.295" width), operates within a voltage supply range of 4.5V to 5.5V. It supports a data rate of 250 Kilo-bits per second (KBd) and operates across an industrial temperature range of -40°C to 85°C. The device incorporates 400mV of receiver hysteresis for robust signal integrity. This transceiver is suitable for applications in industrial automation and communications systems requiring reliable RS232 serial communication. The component is supplied on tape and reel for automated assembly.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 24-SOIC (0.295"", 7.50mm Width) |
| Mounting Type | Surface Mount |
| Type | Transceiver |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 4.5V ~ 5.5V |
| Number of Drivers/Receivers | 3/5 |
| Data Rate | 250KBd |
| Protocol | RS232 |
| Supplier Device Package | 24-SOIC |
| Receiver Hysteresis | 400 mV |
| Duplex | Full |
