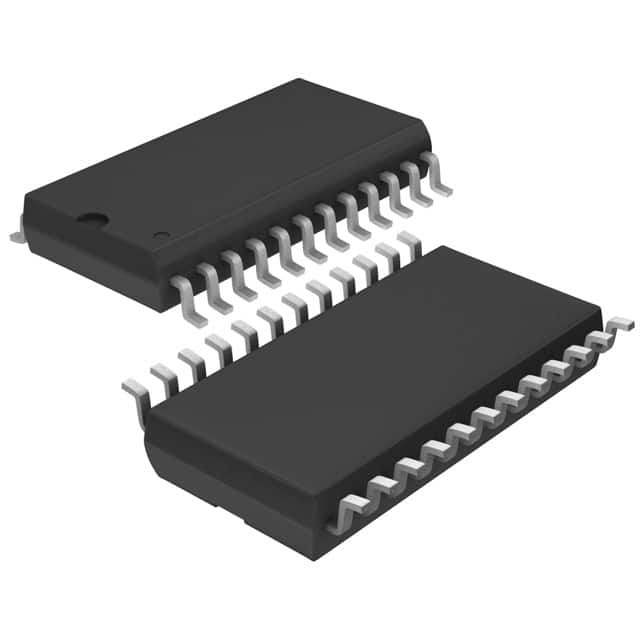

LT1132AISW#TRPBF
IC TRANSCEIVER FULL 5/3 24SOICManufacturer: Analog Devices Inc.
Categories: Drivers, Receivers, Transceivers
Quality Control: Learn More
Analog Devices Inc. LT1132AISW-TRPBF is a full RS232 transceiver featuring 5 drivers and 3 receivers. This surface mount component, housed in a 24-SOIC package, operates within a supply voltage range of 4.5V to 5.5V and supports a data rate of 250KBd. The device offers 400mV of receiver hysteresis, enhancing signal integrity. Operating temperature ranges from -40°C to 85°C. This component is supplied on a tape and reel for automated assembly. Applications for this transceiver include industrial automation, communication equipment, and instrumentation systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 24-SOIC (0.295"", 7.50mm Width) |
| Mounting Type | Surface Mount |
| Type | Transceiver |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 4.5V ~ 5.5V |
| Number of Drivers/Receivers | 5/3 |
| Data Rate | 250KBd |
| Protocol | RS232 |
| Supplier Device Package | 24-SOIC |
| Receiver Hysteresis | 400 mV |
| Duplex | Full |
