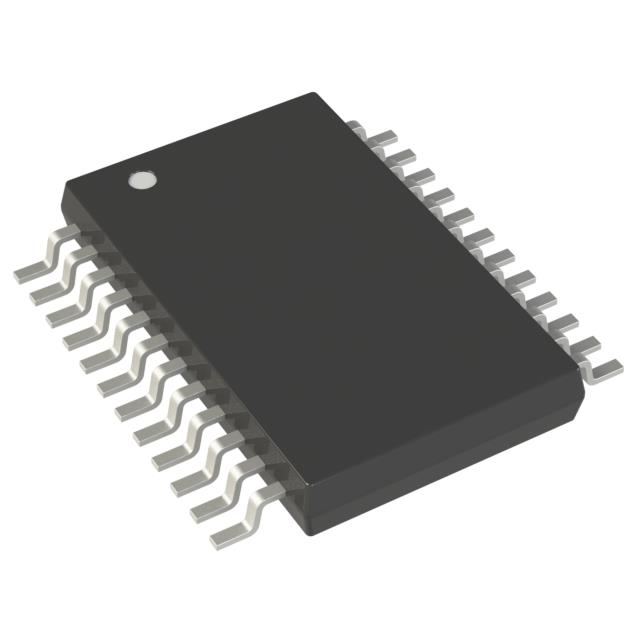

ADM209ARS-REEL
IC TXRX RS-232 5.0/9.0V 24SSOPManufacturer: Analog Devices Inc.
Categories: Drivers, Receivers, Transceivers
Quality Control: Learn More
Analog Devices Inc. ADM209ARS-REEL is a 4/5 transceiver designed for RS-232 serial communication. This component operates with a single power supply ranging from 4.5V to 5.5V, offering flexibility for various system designs. The device features a 24-SSOP package with a 0.209-inch (5.30mm) width, facilitating surface mount integration. With four drivers and five receivers, the ADM209ARS-REEL is suitable for applications requiring robust serial data transmission. Its functionality is leveraged across industrial automation, telecommunications, and consumer electronics sectors. The part is supplied in bulk packaging.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 24-SSOP (0.209"", 5.30mm Width) |
| Mounting Type | Surface Mount |
| Type | Transceiver |
| Voltage - Supply | 4.5V ~ 5.5V |
| Number of Drivers/Receivers | 4/5 |
| Protocol | RS232 |
| Supplier Device Package | 24-SSOP |
