AD9954YSVZ
IC DDS 400MHZ 14BIT 48TQFPManufacturer: Analog Devices Inc.
Categories: Direct Digital Synthesis (DDS)
Quality Control: Learn More

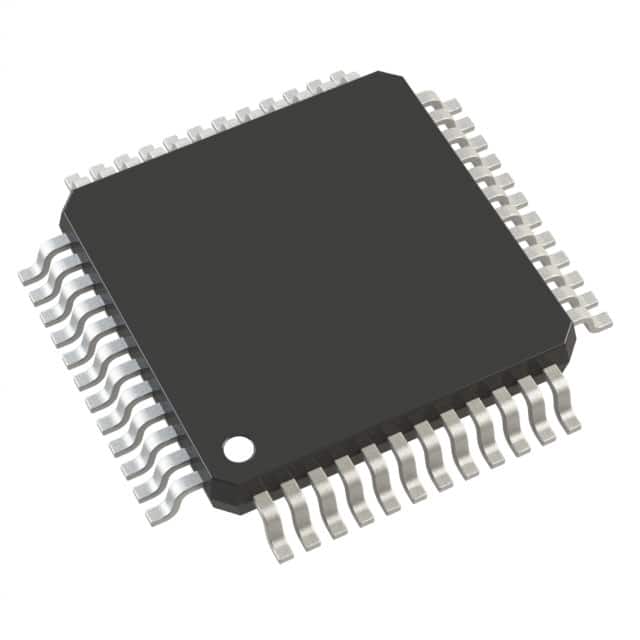

Analog Devices Inc. AD9954YSVZ is a 14-bit Direct Digital Synthesis (DDS) system integrated circuit. This component operates with a master clock frequency up to 400 MHz and features a 32-bit tuning word width, enabling fine control over output frequency. The AD9954YSVZ is housed in a 48-TQFP Exposed Pad package, requiring surface mount installation. Its operating temperature range is -40°C to 105°C, and it operates from a supply voltage of 1.71V to 1.96V. This DDS IC is suitable for applications in communications, radar, and test and measurement equipment.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 48-TQFP Exposed Pad |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 105°C |
| Voltage - Supply | 1.71V ~ 1.96V |
| Resolution (Bits) | 14 b |
| Master fclk | 400 MHz |
| Tuning Word Width (Bits) | 32 b |
| Supplier Device Package | 48-TQFP-EP (7x7) |
