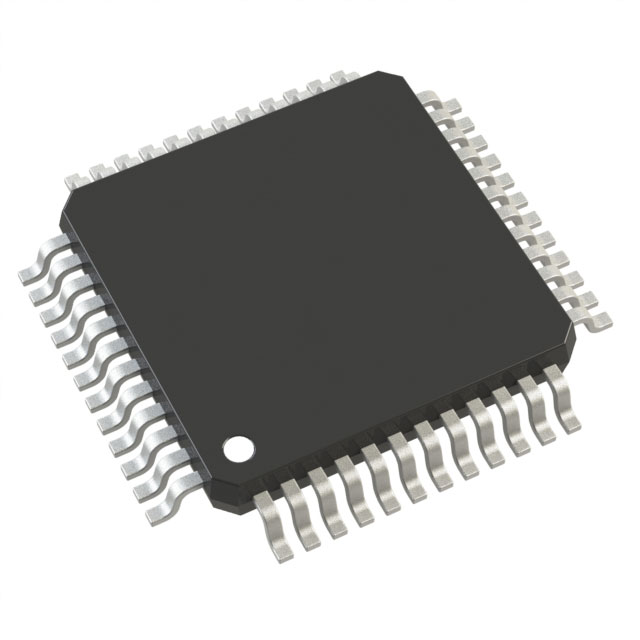

AD9954YSV
IC DDS DAC 14BIT 1.8V 48-TQFPManufacturer: Analog Devices Inc.
Categories: Direct Digital Synthesis (DDS)
Quality Control: Learn More
Analog Devices Inc. AD9954YSV is a 14-bit Direct Digital Synthesis (DDS) integrated circuit operating with a master clock frequency of up to 400 MHz. This device features a 32-bit tuning word resolution, enabling fine control over output frequency. The AD9954YSV is housed in a 48-lead exposed pad TQFP package, designed for surface mounting. It operates within a supply voltage range of 1.71V to 1.96V and has an operating temperature range of -40°C to 105°C. This component is frequently utilized in applications such as arbitrary waveform generation, frequency hopping, and agile RF signal generation across telecommunications, test and measurement, and radar systems.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BagDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bag |
| Package / Case | 48-TQFP Exposed Pad |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 105°C |
| Voltage - Supply | 1.71V ~ 1.96V |
| Resolution (Bits) | 14 b |
| Master fclk | 400 MHz |
| Tuning Word Width (Bits) | 32 b |
| Supplier Device Package | 48-TQFP-EP (7x7) |
