AD9854AST
IC DDS QUADRATURE CMOS 80-LQFPManufacturer: Analog Devices Inc.
Categories: Direct Digital Synthesis (DDS)
Quality Control: Learn More
Analog Devices Inc. AD9854AST is a 12-bit, 300 MHz Direct Digital Synthesis (DDS) IC. This CMOS device features a 48-bit tuning word width, enabling fine frequency resolution. The AD9854AST is packaged in an 80-LQFP (14x14) for surface mount applications. Operating within a supply voltage range of 3.14V to 3.47V and across an industrial temperature range of -40°C to 85°C, this component is suitable for demanding applications. Its quadrature output capability makes it valuable in complex signal generation tasks. Industries leveraging this technology include wireless communications, radar systems, and test and measurement equipment.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BagDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bag |

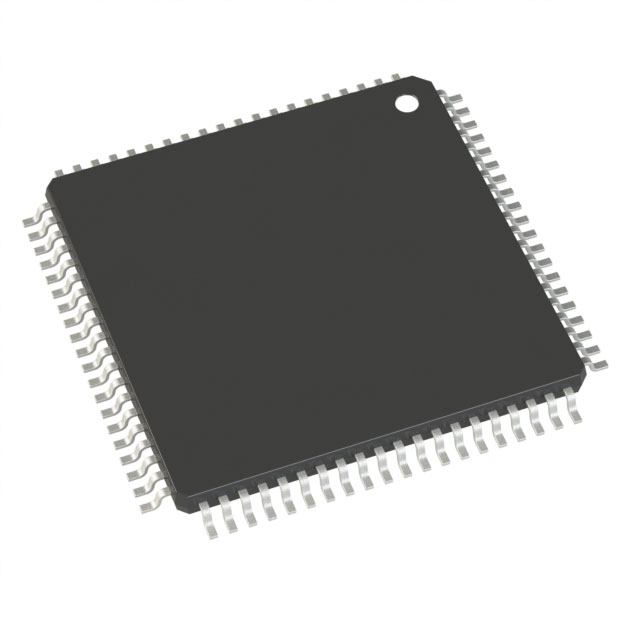

| Package / Case | 80-LQFP |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 3.14V ~ 3.47V |
| Resolution (Bits) | 12 b |
| Master fclk | 300 MHz |
| Tuning Word Width (Bits) | 48 b |
| Supplier Device Package | 80-LQFP (14x14) |
Request a Quote
