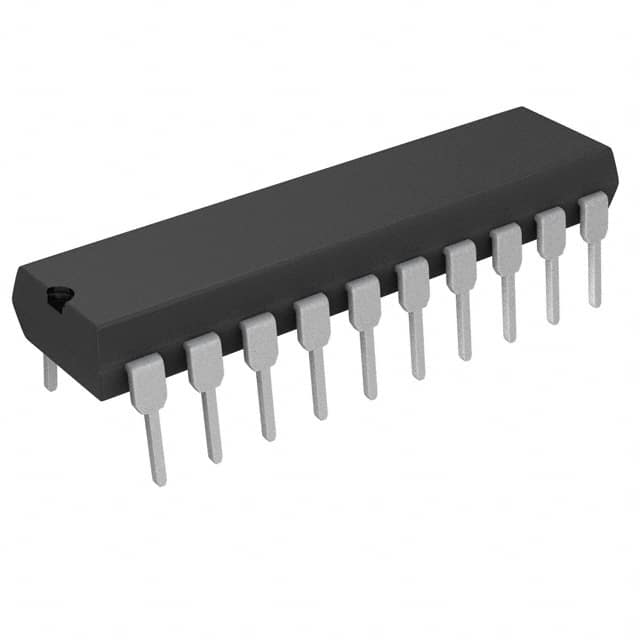

LTC7545ABN#PBF
IC DAC 12BIT A-OUT 20DIPManufacturer: Analog Devices Inc.
Categories: Digital to Analog Converters (DAC)
Quality Control: Learn More
The Analog Devices Inc. LTC7545ABN-PBF is a 12-bit, single-channel digital-to-analog converter. This component features an R-2R architecture and a parallel data interface, delivering a current output that is unbuffered. It requires external voltage references and has a specified settling time of 1µs. The device is designed for operation across a temperature range of -40°C to 85°C and is supplied in a 20-PDIP package with through-hole mounting. Analog supply and digital supply voltages can range from 5V up to ±15.75V. Integral and differential non-linearity are specified at ±0.5 LSB and ±1 LSB maximum, respectively. This component finds application in industrial and instrumentation systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 20-DIP (0.300"", 7.62mm) |
| Output Type | Current - Unbuffered |
| Mounting Type | Through Hole |
| Number of Bits | 12 |
| Data Interface | Parallel |
| Reference Type | External |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 5V, 14.25V ~ 15.75V |
| Voltage - Supply, Digital | 5V, 14.25V ~ 15.75V |
| Settling Time | 1µs |
| Supplier Device Package | 20-PDIP |
| Architecture | R-2R |
| Number of D/A Converters | 1 |
| INL/DNL (LSB) | ±0.5 (Max), ±1 (Max) |
| Differential Output | No |
| Programmable | Not Verified |
