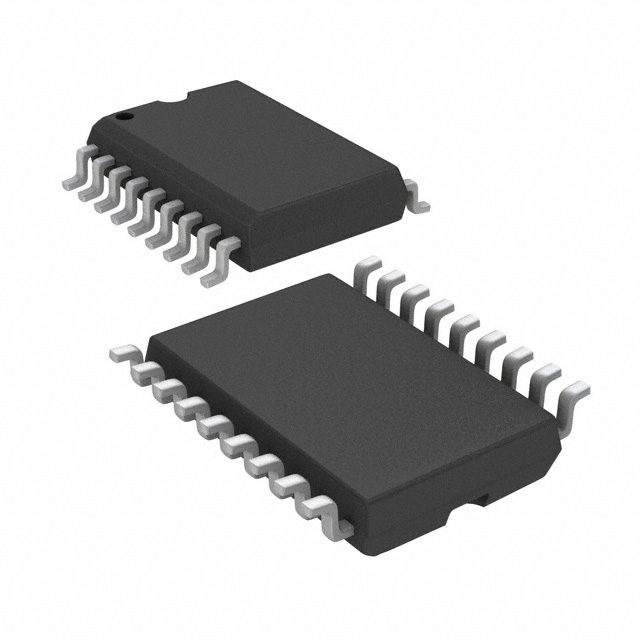

LTC7541ABSW#TRPBF
IC DAC 12BIT A-OUT 18SOICManufacturer: Analog Devices Inc.
Categories: Digital to Analog Converters (DAC)
Quality Control: Learn More
Analog Devices Inc. LTC7541ABSW-TRPBF is a 12-bit, single-channel digital-to-analog converter (DAC) featuring an R-2R architecture. This component offers a parallel data interface for efficient data transfer and provides a differential current output, unbuffered. With a specified INL/DNL of ±0.5 LSB maximum, it ensures high linearity. The DAC supports external voltage references and operates within analog and digital supply ranges of 5V to 16V. Its settling time is typically 600ns. Packaged in an 18-SOIC surface-mount format, this device is designed for operation across an industrial temperature range of -40°C to 85°C. The LTC7541ABSW-TRPBF is suitable for applications in industrial control, instrumentation, and high-speed data acquisition systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 18-SOIC (0.295"", 7.50mm Width) |
| Output Type | Current - Unbuffered |
| Mounting Type | Surface Mount |
| Number of Bits | 12 |
| Data Interface | Parallel |
| Reference Type | External |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 5V ~ 16V |
| Voltage - Supply, Digital | 5V ~ 16V |
| Settling Time | 600ns (Typ) |
| Supplier Device Package | 18-SO |
| Architecture | R-2R |
| Number of D/A Converters | 1 |
| INL/DNL (LSB) | ±0.5 (Max), ±0.5 (Max) |
| Differential Output | Yes |
| Programmable | Not Verified |
