LTC2756BIG#TRPBF
IC DAC 18BIT A-OUT 28SSOPManufacturer: Analog Devices Inc.
Categories: Digital to Analog Converters (DAC)
Quality Control: Learn More

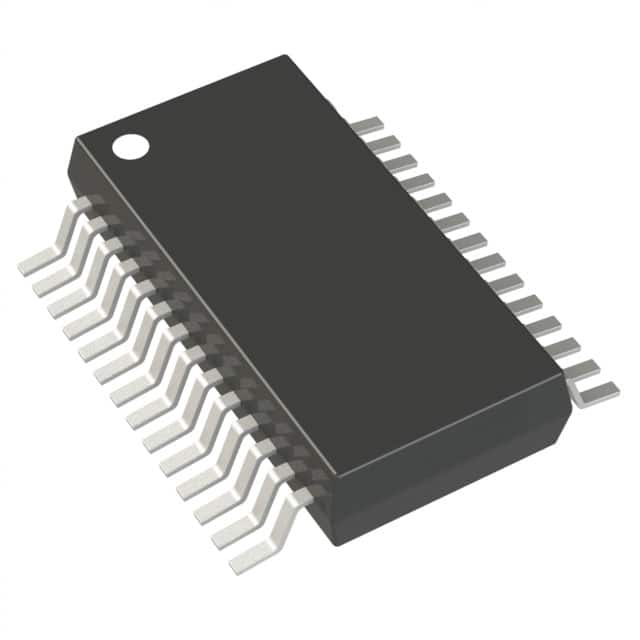

Analog Devices Inc. SoftSpan™ series 18-bit multiplying Digital-to-Analog Converter, part number LTC2756BIG-TRPBF. This component features a single unbuffered current output and a 28-SSOP package suitable for surface mounting. The LTC2756BIG-TRPBF supports an SPI data interface and offers a differential output. Key specifications include a ±2 LSB maximum INL/DNL, a typical settling time of 2.1µs, and an external reference type. Operating across an analog and digital supply voltage range of 2.7V to 5.5V, this device is designed for applications requiring high precision in industrial, medical, and communications sectors. The component is supplied in Tape & Reel packaging.
Additional Information
Series: SoftSpan™RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 28-SSOP (0.209"", 5.30mm Width) |
| Output Type | Current - Unbuffered |
| Mounting Type | Surface Mount |
| Number of Bits | 18 |
| Data Interface | SPI |
| Reference Type | External |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 2.7V ~ 5.5V |
| Voltage - Supply, Digital | 2.7V ~ 5.5V |
| Settling Time | 2.1µs (Typ) |
| Supplier Device Package | 28-SSOP |
| Architecture | Multiplying DAC |
| Number of D/A Converters | 1 |
| INL/DNL (LSB) | ±2 (Max), ±1 (Max) |
| Differential Output | Yes |
| Programmable | Not Verified |
