LTC2754BIUKG-16#TRPBF
IC DAC 16BIT A-OUT 52QFNManufacturer: Analog Devices Inc.
Categories: Digital to Analog Converters (DAC)
Quality Control: Learn More

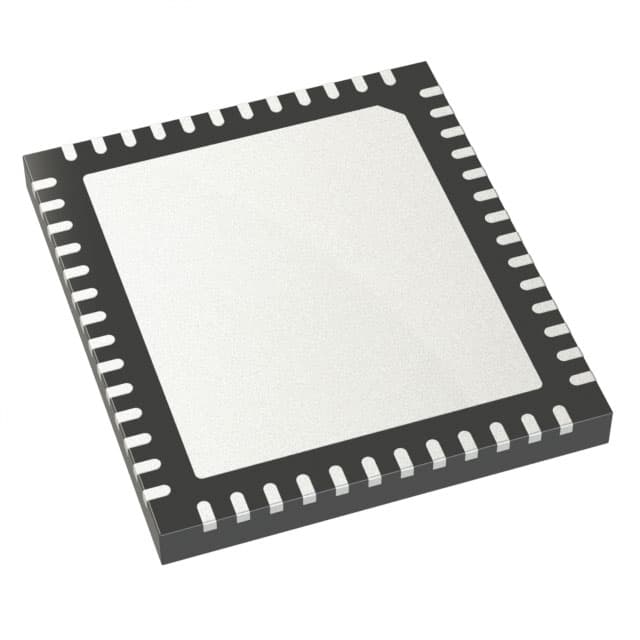

The Analog Devices Inc. LTC2754BIUKG-16-TRPBF is a 4-channel, 16-bit multiplying digital-to-analog converter (DAC) from the SoftSpan™ series. Featuring a 52-QFN (7x8) exposed pad package, this component offers a high-performance solution for applications requiring precise analog output. The device supports an SPI data interface and provides a differential current output, unbuffered, with a fast settling time of 2µs typical. Integral and differential linearity are rated at ±2 LSB and ±1 LSB maximum, respectively. This surface mount component operates over an analog and digital supply voltage range of 2.7V to 5.5V, with an operating temperature range of -40°C to 85°C. The external reference type allows for flexibility in system design. This DAC is suitable for use in industrial automation, test and measurement, and high-fidelity audio systems.
Additional Information
Series: SoftSpan™RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 52-WFQFN Exposed Pad |
| Output Type | Current - Unbuffered |
| Mounting Type | Surface Mount |
| Number of Bits | 16 |
| Data Interface | SPI |
| Reference Type | External |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 2.7V ~ 5.5V |
| Voltage - Supply, Digital | 2.7V ~ 5.5V |
| Settling Time | 2µs (Typ) |
| Supplier Device Package | 52-QFN (7x8) |
| Architecture | Multiplying DAC |
| Number of D/A Converters | 4 |
| INL/DNL (LSB) | ±2 (Max), ±1 (Max) |
| Differential Output | Yes |
| Programmable | Not Verified |
