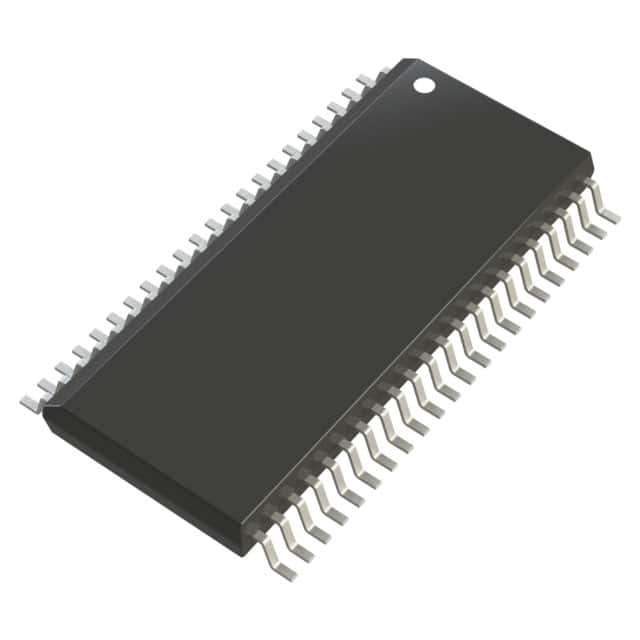

LTC2704IGW-12#TRPBF
IC DAC 12BIT V-OUT 44SSOPManufacturer: Analog Devices Inc.
Categories: Digital to Analog Converters (DAC)
Quality Control: Learn More
Analog Devices Inc. presents the LTC2704IGW-12-TRPBF, a 12-bit, 4-channel voltage-output digital-to-analog converter from the SoftSpan™ series. This component features a serial SPI interface for data input and offers a buffered voltage output. With a ±1 LSB maximum INL/DNL specification and a typical settling time of 8µs, it provides precise signal generation. The device supports analog supply voltages from ±4.5V to ±16.5V and digital supply voltages from 2.7V to 5.5V, with an operating temperature range of -40°C to 85°C. The LTC2704IGW-12-TRPBF is supplied in a 44-SSOP package, suitable for surface mounting. This DAC is utilized in applications requiring high-resolution analog signal generation, including industrial control, test and measurement, and audio processing systems.
Additional Information
Series: SoftSpan™RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 44-BSOP (0.295"", 7.50mm Width) |
| Output Type | Voltage - Buffered |
| Mounting Type | Surface Mount |
| Number of Bits | 12 |
| Data Interface | SPI |
| Reference Type | External |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | ±4.5V ~ 16.5V |
| Voltage - Supply, Digital | 2.7V ~ 5.5V |
| Settling Time | 8µs (Typ) |
| Supplier Device Package | 44-SSOP |
| Architecture | - |
| Number of D/A Converters | 4 |
| INL/DNL (LSB) | ±1 (Max), ±1 (Max) |
| Differential Output | No |
| Programmable | Not Verified |
