LTC2704CGW-12#TRPBF
IC DAC 12BIT V-OUT 44SSOPManufacturer: Analog Devices Inc.
Categories: Digital to Analog Converters (DAC)
Quality Control: Learn More

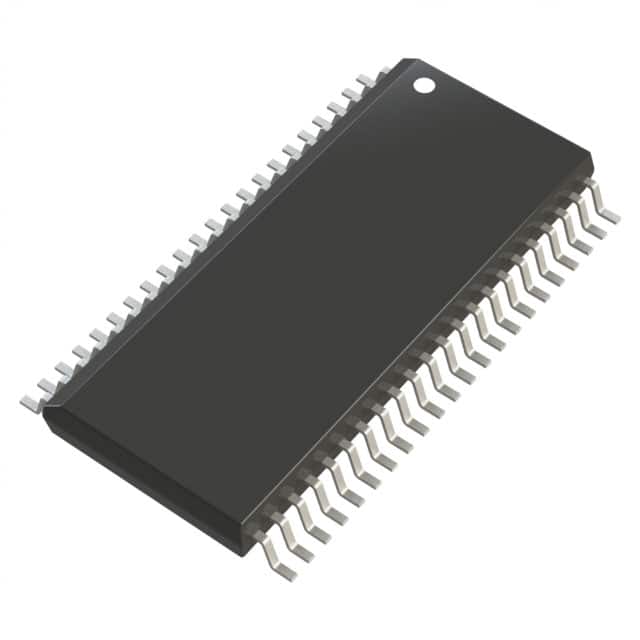

Analog Devices Inc. SoftSpan™ series 12-bit, quad-channel, voltage-output digital-to-analog converter (DAC), part number LTC2704CGW-12-TRPBF. This device features an SPI data interface and offers buffered voltage output. It boasts a ±4.5V to ±16.5V analog supply range and a 2.7V to 5.5V digital supply range. The INL/DNL specifications are ±1 LSB maximum. The LTC2704CGW-12-TRPBF has a settling time of 8µs typical and operates within a 0°C to 70°C temperature range. The component is provided in a 44-SSOP package suitable for surface mounting. This DAC is utilized in applications requiring precise voltage generation, such as industrial control systems and data acquisition.
Additional Information
Series: SoftSpan™RoHS Status: ROHS3 CompliantManufacturer Lead Time: 13 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 44-BSOP (0.295"", 7.50mm Width) |
| Output Type | Voltage - Buffered |
| Mounting Type | Surface Mount |
| Number of Bits | 12 |
| Data Interface | SPI |
| Reference Type | External |
| Operating Temperature | 0°C ~ 70°C |
| Voltage - Supply, Analog | ±4.5V ~ 16.5V |
| Voltage - Supply, Digital | 2.7V ~ 5.5V |
| Settling Time | 8µs (Typ) |
| Supplier Device Package | 44-SSOP |
| Architecture | - |
| Number of D/A Converters | 4 |
| INL/DNL (LSB) | ±1 (Max), ±1 (Max) |
| Differential Output | No |
| Programmable | Not Verified |
