LTC2704CGW-12
IC DAC 12BIT V-OUT 44SSOPManufacturer: Analog Devices Inc.
Categories: Digital to Analog Converters (DAC)
Quality Control: Learn More
Analog Devices Inc. LTC2704CGW-12 is a 12-bit, 4-channel voltage-output digital-to-analog converter from the SoftSpan™ series. This device features a high precision INL/DNL of ±1 LSB (Max) and a fast settling time of 8µs (Typ). The LTC2704CGW-12 supports an SPI data interface and offers buffered voltage outputs. It operates with analog supply voltages ranging from ±4.5V to ±16.5V and digital supply voltages from 2.7V to 5.5V. The component is housed in a 44-lead SSOP package and is designed for surface-mount applications. This DAC is suitable for use in high-performance test and measurement equipment, industrial automation, and audio processing systems.
Additional Information
Series: SoftSpan™RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |

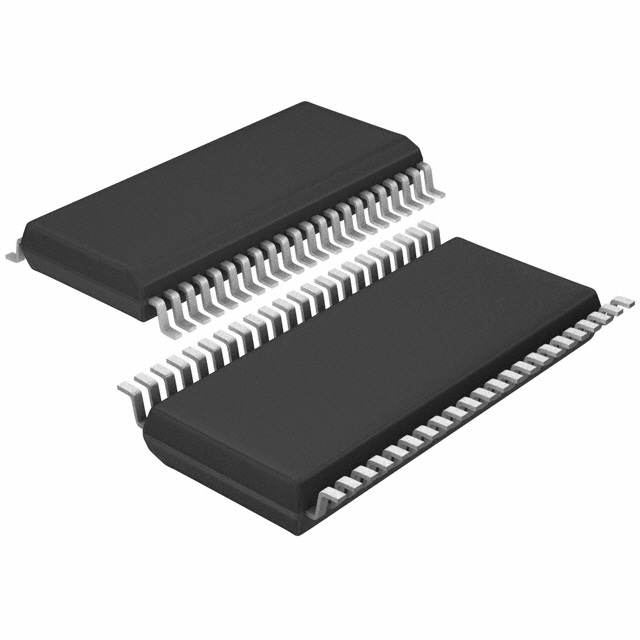

| Package / Case | 44-BSOP (0.295"", 7.50mm Width) |
| Output Type | Voltage - Buffered |
| Mounting Type | Surface Mount |
| Number of Bits | 12 |
| Data Interface | SPI |
| Reference Type | External |
| Operating Temperature | 0°C ~ 70°C |
| Voltage - Supply, Analog | ±4.5V ~ 16.5V |
| Voltage - Supply, Digital | 2.7V ~ 5.5V |
| Settling Time | 8µs (Typ) |
| Supplier Device Package | 44-SSOP |
| Architecture | - |
| Number of D/A Converters | 4 |
| INL/DNL (LSB) | ±1 (Max), ±1 (Max) |
| Differential Output | No |
| Programmable | Not Verified |
