LTC2688IUJ-16#TRPBF

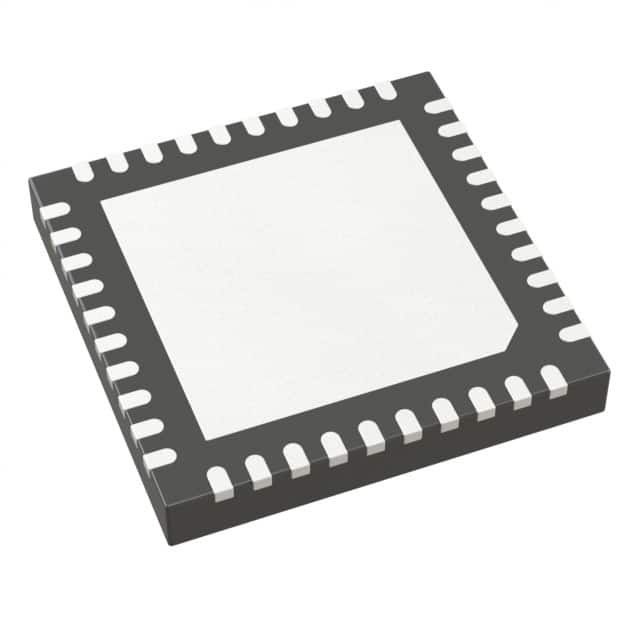

IC DAC 16BIT V-OUT 40QFNManufacturer: Analog Devices Inc.
Categories: Digital to Analog Converters (DAC)
Quality Control: Learn More
The Analog Devices Inc. LTC2688IUJ-16-TRPBF is a 16-bit, 16-channel digital-to-analog converter featuring a voltage output. This component utilizes a multiplying DAC architecture with an SPI data interface for efficient communication. It offers a buffered voltage output and supports both external and internal voltage references. The device boasts a maximum Integral Non-Linearity (INL) and Differential Non-Linearity (DNL) of ±3 LSB. With a settling time of 28µs, it is suitable for applications requiring precise and rapid conversions. The LTC2688IUJ-16-TRPBF operates within an analog supply voltage range of 4.75V to 5.25V and a digital supply voltage range of 1.71V to 5.55V. It is supplied in a 40-QFN (6x6) exposed pad package, designed for surface mounting. This component finds application in industrial automation, medical instrumentation, and precision control systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 40-WFQFN Exposed Pad |
| Output Type | Voltage - Buffered |
| Mounting Type | Surface Mount |
| Number of Bits | 16 |
| Data Interface | SPI |
| Reference Type | External, Internal |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 4.75V ~ 5.25V |
| Voltage - Supply, Digital | 1.71V ~ 5.55V |
| Settling Time | 28µs |
| Supplier Device Package | 40-QFN (6x6) |
| Architecture | Multiplying DAC |
| Number of D/A Converters | 16 |
| INL/DNL (LSB) | ±3LSB (Max), ±1 (Max) |
| Differential Output | No |
| Programmable | Not Verified |
