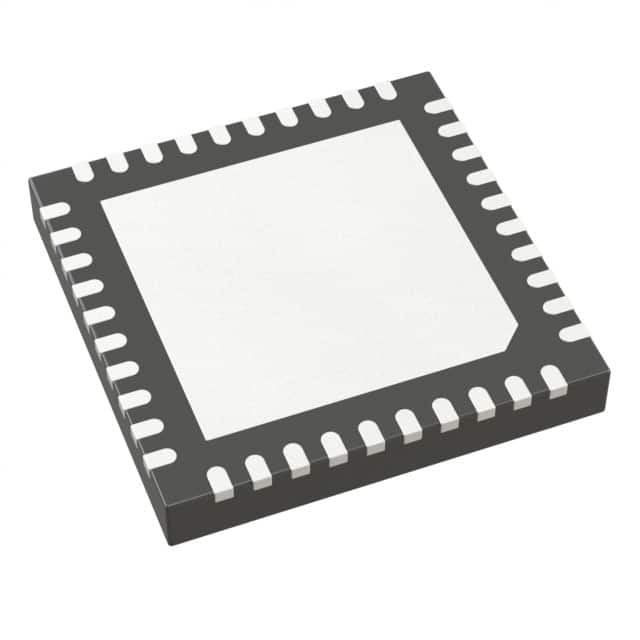

LTC2686HUJ-16#TRPBF
IC DAC 16BIT V-OUT 40QFNManufacturer: Analog Devices Inc.
Categories: Digital to Analog Converters (DAC)
Quality Control: Learn More
Analog Devices Inc. LTC2686HUJ-16-TRPBF is a high-precision 16-bit, 8-channel digital-to-analog converter (DAC) featuring buffered voltage output. This device utilizes an SPI interface for data transfer and offers excellent linearity performance with INL/DNL specifications of ±3 LSB maximum. The LTC2686HUJ-16-TRPBF operates across a wide temperature range of -40°C to 125°C and supports analog and digital supply voltages from 4.75V to 5.25V. Its 40-QFN (6x6) package with an exposed pad is suitable for surface mounting. Settling time is typically 18µs. This component finds application in demanding systems such as industrial automation, test and measurement equipment, and high-performance audio.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 40-WFQFN Exposed Pad |
| Output Type | Voltage - Buffered |
| Mounting Type | Surface Mount |
| Number of Bits | 16 |
| Data Interface | SPI |
| Reference Type | External, Internal |
| Operating Temperature | -40°C ~ 125°C |
| Voltage - Supply, Analog | 4.75V ~ 5.25V |
| Voltage - Supply, Digital | 4.75V ~ 5.25V |
| Settling Time | 18µs (Typ) |
| Supplier Device Package | 40-QFN (6x6) |
| Architecture | - |
| Number of D/A Converters | 8 |
| INL/DNL (LSB) | ±3 (Max), ±1 (Max) |
| Differential Output | No |
| Programmable | Not Verified |
