LTC2686CUJ-16#TRPBF

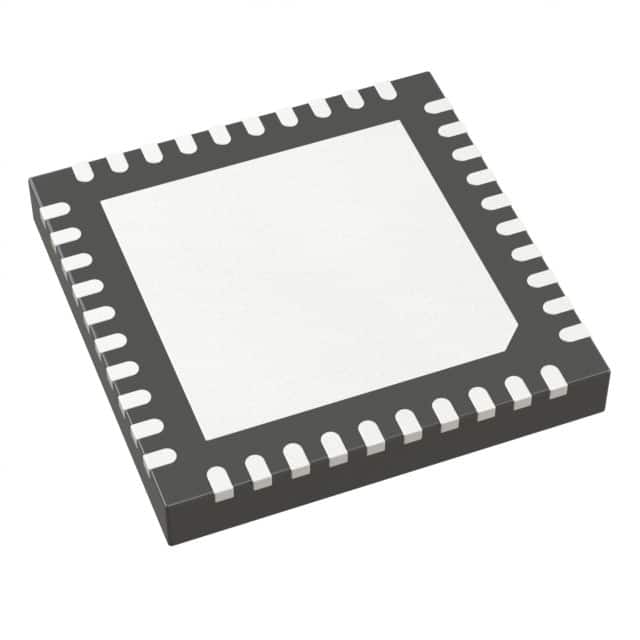

IC DAC 16BIT V-OUT 40QFNManufacturer: Analog Devices Inc.
Categories: Digital to Analog Converters (DAC)
Quality Control: Learn More
The Analog Devices Inc. LTC2686CUJ-16-TRPBF is an 8-channel, 16-bit digital-to-analog converter (DAC) with a voltage output. This component features an SPI data interface for efficient communication and provides buffered voltage outputs. Its integral and differential non-linearity (INL/DNL) are specified at ±3 LSB maximum and ±1 LSB maximum, respectively. The DAC supports both external and internal reference types. With a settling time of 18µs typical, it is suitable for applications requiring precise and timely analog signal generation. The device operates within an analog and digital supply voltage range of 4.75V to 5.25V and is designed for surface mounting in a 40-QFN (6x6mm) exposed pad package, supplied on tape and reel. This component finds application in areas such as industrial automation, test and measurement, and high-performance signal generation.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 40-WFQFN Exposed Pad |
| Output Type | Voltage - Buffered |
| Mounting Type | Surface Mount |
| Number of Bits | 16 |
| Data Interface | SPI |
| Reference Type | External, Internal |
| Operating Temperature | 0°C ~ 70°C |
| Voltage - Supply, Analog | 4.75V ~ 5.25V |
| Voltage - Supply, Digital | 4.75V ~ 5.25V |
| Settling Time | 18µs (Typ) |
| Supplier Device Package | 40-QFN (6x6) |
| Architecture | - |
| Number of D/A Converters | 8 |
| INL/DNL (LSB) | ±3 (Max), ±1 (Max) |
| Differential Output | No |
| Programmable | Not Verified |
