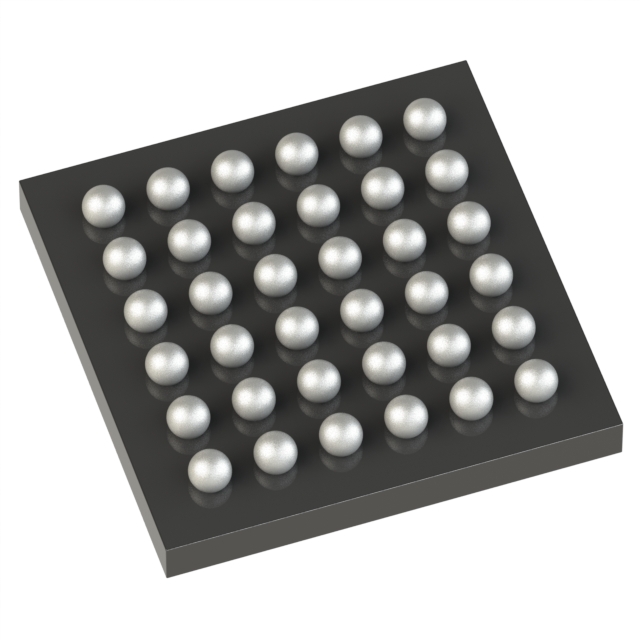

LTC2672HCB-16#TRPBF
5ch 300mA 16Bit CurrentSourceOutManufacturer: Analog Devices Inc.
Categories: Digital to Analog Converters (DAC)
Quality Control: Learn More
16 Bit Digital to Analog Converter 5 36-WLCSP (3.53x3.48)
Additional Information
Series: SoftSpan™RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 36-WFBGA, WLCSP |
| Output Type | Current - Unbuffered |
| Mounting Type | Surface Mount |
| Number of Bits | 16 |
| Data Interface | 3-Wire Serial, SPI |
| Reference Type | External, Internal |
| Operating Temperature | -40°C ~ 125°C |
| Voltage - Supply, Analog | 2.85V ~ 5.5V |
| Voltage - Supply, Digital | 1.71V ~ 5.5V |
| Settling Time | 200µs (Typ) |
| Supplier Device Package | 36-WLCSP (3.53x3.48) |
| Architecture | Current Source |
| Number of D/A Converters | 5 |
| INL/DNL (LSB) | ±12, ±0.45LSB |
| Differential Output | No |
| Grade | - |
| Programmable | - |
| Qualification | - |
