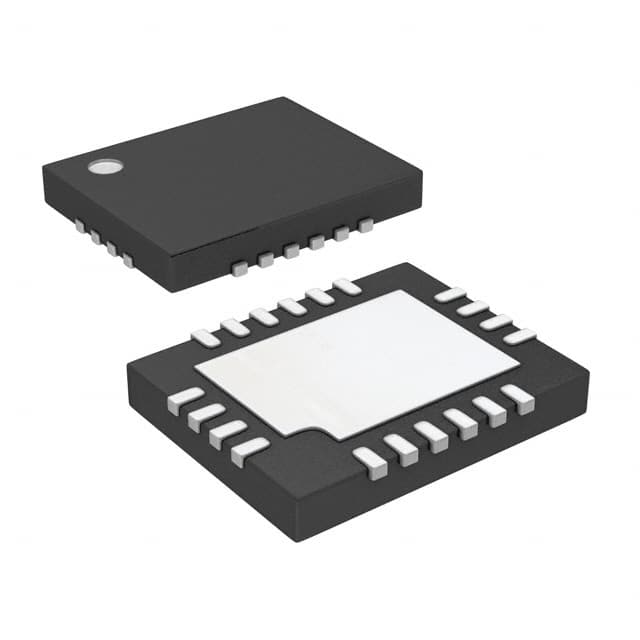

LTC2657BIUFD-L16#TRPBF
IC DAC 16BIT V-OUT 20QFNManufacturer: Analog Devices Inc.
Categories: Digital to Analog Converters (DAC)
Quality Control: Learn More
The Analog Devices Inc. LTC2657BIUFD-L16-TRPBF is an 8-channel, 16-bit Digital to Analog Converter (DAC) featuring voltage output. This component utilizes an I2C data interface for communication. It offers excellent linearity performance with Integral Non-Linearity (INL) and Differential Non-Linearity (DNL) of ±2 LSB and ±0.3 LSB respectively. The device operates from a 2.7V to 5.5V analog and digital supply voltage and provides a buffered voltage output. Its 20-QFN (4x5) package with an exposed pad is suitable for surface mounting. The LTC2657BIUFD-L16-TRPBF is designed for applications requiring precise analog signal generation, commonly found in industrial control, data acquisition systems, and medical instrumentation. It supports both internal and external reference types and achieves a typical settling time of 9.1µs. The operating temperature range is -40°C to 85°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 20-WFQFN Exposed Pad |
| Output Type | Voltage - Buffered |
| Mounting Type | Surface Mount |
| Number of Bits | 16 |
| Data Interface | I2C |
| Reference Type | External, Internal |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 2.7V ~ 5.5V |
| Voltage - Supply, Digital | 2.7V ~ 5.5V |
| Settling Time | 9.1µs (Typ) |
| Supplier Device Package | 20-QFN (4x5) |
| Architecture | - |
| Number of D/A Converters | 8 |
| INL/DNL (LSB) | ±2, ±0.3 |
| Differential Output | No |
| Programmable | Not Verified |
