LTC2656BIUFD-H16#TRPBF

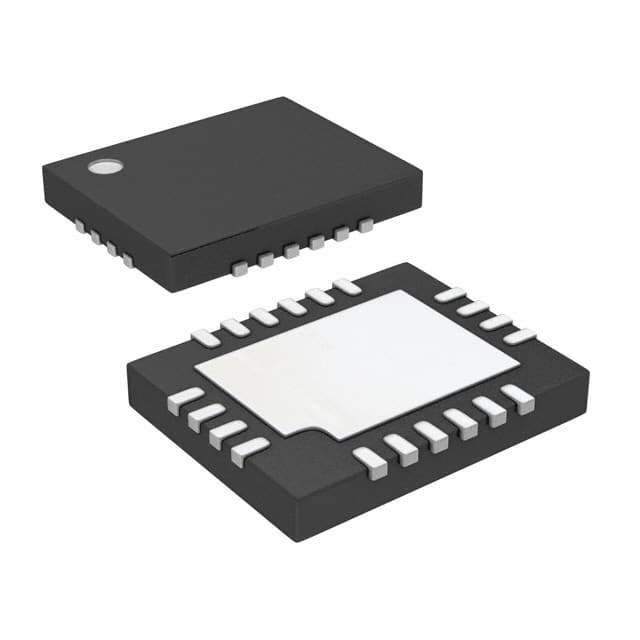

IC DAC 16BIT V-OUT 20QFNManufacturer: Analog Devices Inc.
Categories: Digital to Analog Converters (DAC)
Quality Control: Learn More
Analog Devices Inc. presents the LTC2656BIUFD-H16-TRPBF, an 8-channel, 16-bit digital-to-analog converter. This component features a voltage output with buffering, designed for precision applications. The device utilizes an SPI data interface for straightforward integration into complex systems. With a typical settling time of 7.9µs, it ensures rapid response for dynamic signal generation. The INL/DNL specifications of ±2 LSB and ±0.3 LSB respectively highlight its accuracy. Operating across a temperature range of -40°C to 85°C, it is suitable for demanding industrial environments. The LTC2656BIUFD-H16-TRPBF is supplied in a 20-QFN (4x5) package with an exposed pad, facilitating efficient heat dissipation. Analog and digital supply voltages are both rated at 5V, with options for external or internal voltage references. This component is commonly employed in industrial automation, test and measurement equipment, and precision control systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 20-WFQFN Exposed Pad |
| Output Type | Voltage - Buffered |
| Mounting Type | Surface Mount |
| Number of Bits | 16 |
| Data Interface | SPI |
| Reference Type | External, Internal |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 5V |
| Settling Time | 7.9µs (Typ) |
| Supplier Device Package | 20-QFN (4x5) |
| Architecture | - |
| Number of D/A Converters | 8 |
| INL/DNL (LSB) | ±2, ±0.3 |
| Differential Output | No |
| Programmable | Not Verified |
