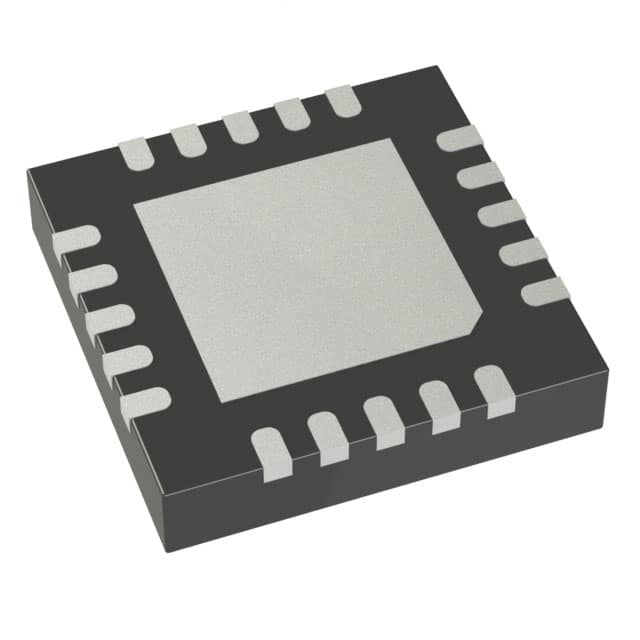

LTC2654IUF-H12#TRPBF
IC DAC 12BIT V-OUT 20QFNManufacturer: Analog Devices Inc.
Categories: Digital to Analog Converters (DAC)
Quality Control: Learn More
Analog Devices Inc. LTC2654IUF-H12-TRPBF is a quad-channel, 12-bit digital-to-analog converter (DAC) with a voltage output, featuring a 20-QFN (4x4) exposed pad package. This component offers a high degree of precision with Integral Non-Linearity (INL) and Differential Non-Linearity (DNL) of ±0.5 LSB and ±0.1 LSB respectively. Data is interfaced via SPI, and the device supports both external and internal voltage references. The output is voltage-buffered, achieving a typical settling time of 4.2µs. Operating across an analog and digital supply range of 5V, this DAC is designed for operation in industrial environments with an extended temperature range of -40°C to 85°C. Its robust performance makes it suitable for applications in industrial automation, instrumentation, and high-precision control systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 20-WFQFN Exposed Pad |
| Output Type | Voltage - Buffered |
| Mounting Type | Surface Mount |
| Number of Bits | 12 |
| Data Interface | SPI |
| Reference Type | External, Internal |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 5V |
| Settling Time | 4.2µs (Typ) |
| Supplier Device Package | 20-QFN (4x4) |
| Architecture | - |
| Number of D/A Converters | 4 |
| INL/DNL (LSB) | ±0.5, ±0.1 |
| Differential Output | No |
| Programmable | Not Verified |
