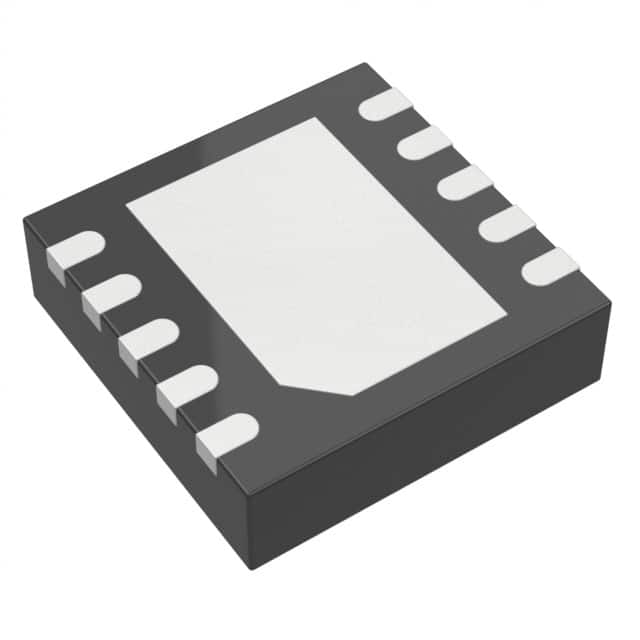

LTC2642IDD-14#TRPBF
IC DAC 14BIT V-OUT 10DFNManufacturer: Analog Devices Inc.
Categories: Digital to Analog Converters (DAC)
Quality Control: Learn More
The Analog Devices Inc. LTC2642IDD-14-TRPBF is a 14-bit, single-channel voltage-output digital-to-analog converter. This R-2R architecture device features an SPI serial interface for data communication. It offers a precise 14-bit resolution with integral and differential linearity errors of ±0.5 LSB. The LTC2642IDD-14-TRPBF operates from a single analog and digital supply voltage ranging from 2.7V to 5.5V. The output is unbuffered voltage, and the settling time is typically 1µs. This component is housed in a 10-WFDFN exposed pad package, suitable for surface mounting. Applications for this DAC include industrial automation, medical instrumentation, and consumer electronics.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 10-WFDFN Exposed Pad |
| Output Type | Voltage - Unbuffered |
| Mounting Type | Surface Mount |
| Number of Bits | 14 |
| Data Interface | SPI |
| Reference Type | External |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 2.7V ~ 5.5V |
| Voltage - Supply, Digital | 2.7V ~ 5.5V |
| Settling Time | 1µs (Typ) |
| Supplier Device Package | 10-DFN (3x3) |
| Architecture | R-2R |
| Number of D/A Converters | 1 |
| INL/DNL (LSB) | ±0.5, ±0.5 |
| Differential Output | No |
| Programmable | Not Verified |
