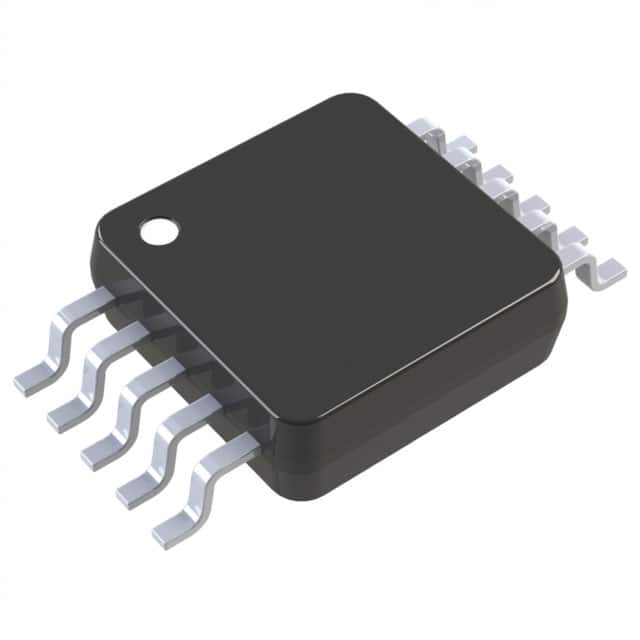

LTC2642CMS-14#TRPBF
IC DAC 14BIT V-OUT 10MSOPManufacturer: Analog Devices Inc.
Categories: Digital to Analog Converters (DAC)
Quality Control: Learn More
Analog Devices Inc. LTC2642CMS-14-TRPBF is a 14-bit, single-channel, voltage-output digital-to-analog converter (DAC). This R-2R architecture DAC features an SPI data interface for efficient communication. It offers a high precision with Integral Non-Linearity (INL) and Differential Non-Linearity (DNL) of ±0.5 LSB. The unbuffered voltage output has a typical settling time of 1µs. Operating with analog and digital supply voltages ranging from 2.7V to 5.5V, the LTC2642CMS-14-TRPBF is designed for surface mount applications within a 0°C to 70°C operating temperature range. The component is supplied in a 10-MSOP package, delivered on tape and reel. This device is suitable for applications in industrial control, instrumentation, and consumer electronics.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 10-TFSOP, 10-MSOP (0.118"", 3.00mm Width) |
| Output Type | Voltage - Unbuffered |
| Mounting Type | Surface Mount |
| Number of Bits | 14 |
| Data Interface | SPI |
| Reference Type | External |
| Operating Temperature | 0°C ~ 70°C |
| Voltage - Supply, Analog | 2.7V ~ 5.5V |
| Voltage - Supply, Digital | 2.7V ~ 5.5V |
| Settling Time | 1µs (Typ) |
| Supplier Device Package | 10-MSOP |
| Architecture | R-2R |
| Number of D/A Converters | 1 |
| INL/DNL (LSB) | ±0.5, ±0.5 |
| Differential Output | No |
| Programmable | Not Verified |
