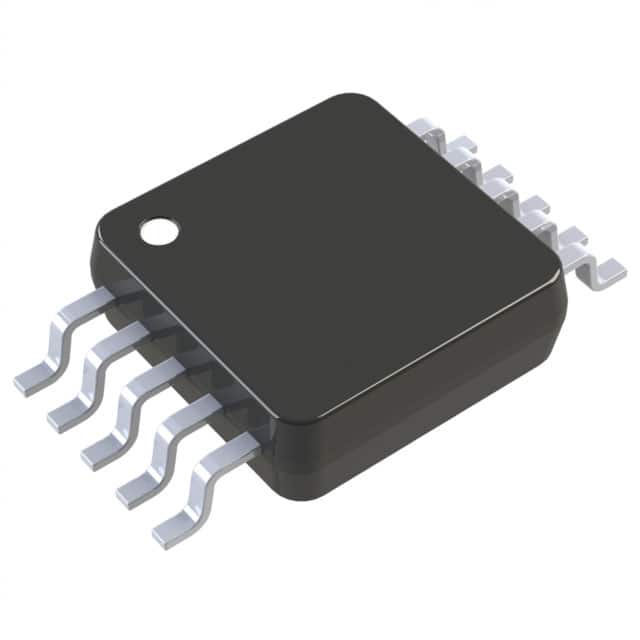

LTC2642AIMS-16#TRPBF
IC DAC 16BIT V-OUT 10MSOPManufacturer: Analog Devices Inc.
Categories: Digital to Analog Converters (DAC)
Quality Control: Learn More
Analog Devices Inc. LTC2642AIMS-16-TRPBF is a 16-bit, single-channel voltage-output digital-to-analog converter (DAC). This component utilizes an R-2R architecture and features an SPI data interface for communication. It offers an INL/DNL specification of ±0.5 LSB and a fast settling time of 1µs. The unbuffered voltage output operates within a supply range of 2.7V to 5.5V for both analog and digital signals. Packaged in a 10-MSOP (10-TFSOP) on tape and reel, this device is suitable for surface mount applications. The operating temperature range is -40°C to 85°C. This DAC is commonly found in industrial automation, medical devices, and precision instrumentation applications.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 39 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 10-TFSOP, 10-MSOP (0.118"", 3.00mm Width) |
| Output Type | Voltage - Unbuffered |
| Mounting Type | Surface Mount |
| Number of Bits | 16 |
| Data Interface | SPI |
| Reference Type | External |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 2.7V ~ 5.5V |
| Voltage - Supply, Digital | 2.7V ~ 5.5V |
| Settling Time | 1µs (Typ) |
| Supplier Device Package | 10-MSOP |
| Architecture | R-2R |
| Number of D/A Converters | 1 |
| INL/DNL (LSB) | ±0.5, ±0.5 |
| Differential Output | No |
| Programmable | Not Verified |
