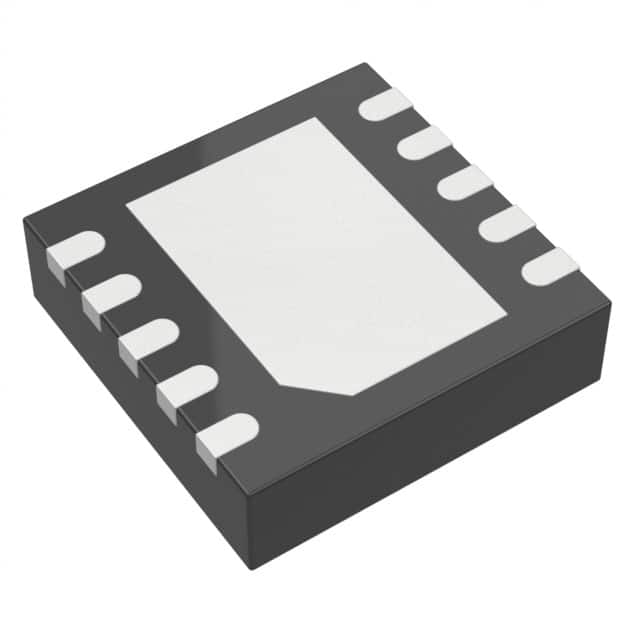

LTC2642ACDD-16#TRPBF
IC DAC 16BIT V-OUT 10DFNManufacturer: Analog Devices Inc.
Categories: Digital to Analog Converters (DAC)
Quality Control: Learn More
Analog Devices Inc. LTC2642ACDD-16-TRPBF is a 16-bit, single-channel voltage-output digital-to-analog converter (DAC) featuring an R-2R architecture. This component utilizes an SPI data interface for efficient communication and offers an external reference for precise control. The DAC provides a unbuffered voltage output with typical INL and DNL specifications of ±0.5 LSB. Its compact 10-DFN (3x3) package with an exposed pad is designed for surface mounting. With a quick settling time of 1µs and a wide analog and digital supply voltage range of 2.7V to 5.5V, the LTC2642ACDD-16-TRPBF is suitable for applications in industrial automation, medical instrumentation, and consumer electronics. The operating temperature range is 0°C to 70°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 10-WFDFN Exposed Pad |
| Output Type | Voltage - Unbuffered |
| Mounting Type | Surface Mount |
| Number of Bits | 16 |
| Data Interface | SPI |
| Reference Type | External |
| Operating Temperature | 0°C ~ 70°C |
| Voltage - Supply, Analog | 2.7V ~ 5.5V |
| Voltage - Supply, Digital | 2.7V ~ 5.5V |
| Settling Time | 1µs (Typ) |
| Supplier Device Package | 10-DFN (3x3) |
| Architecture | R-2R |
| Number of D/A Converters | 1 |
| INL/DNL (LSB) | ±0.5, ±0.5 |
| Differential Output | No |
| Programmable | Not Verified |
