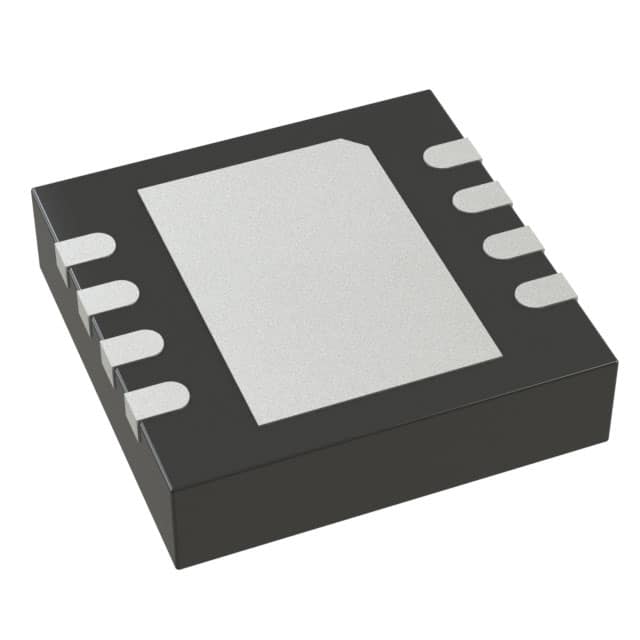

LTC2641IDD-14#TRPBF
IC DAC 14BIT V-OUT 8DFNManufacturer: Analog Devices Inc.
Categories: Digital to Analog Converters (DAC)
Quality Control: Learn More
The Analog Devices Inc. LTC2641IDD-14-TRPBF is a 14-bit, single-channel Digital-to-Analog Converter (DAC) featuring a voltage output. This R-2R architecture DAC utilizes an SPI interface for data transfer, offering a typical settling time of 1µs. It provides excellent linearity with INL/DNL specifications of ±0.5 LSB. The device operates from a 2.7V to 5.5V analog and digital supply voltage. Packaged in an 8-WFDFN exposed pad with a 3x3mm footprint, it is designed for surface mount applications. The unbuffered voltage output and external reference type make it suitable for a range of precision analog control and signal generation tasks in industrial automation, medical equipment, and consumer electronics.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-WFDFN Exposed Pad |
| Output Type | Voltage - Unbuffered |
| Mounting Type | Surface Mount |
| Number of Bits | 14 |
| Data Interface | SPI |
| Reference Type | External |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 2.7V ~ 5.5V |
| Voltage - Supply, Digital | 2.7V ~ 5.5V |
| Settling Time | 1µs (Typ) |
| Supplier Device Package | 8-DFN (3x3) |
| Architecture | R-2R |
| Number of D/A Converters | 1 |
| INL/DNL (LSB) | ±0.5, ±0.5 |
| Differential Output | No |
| Programmable | Not Verified |
