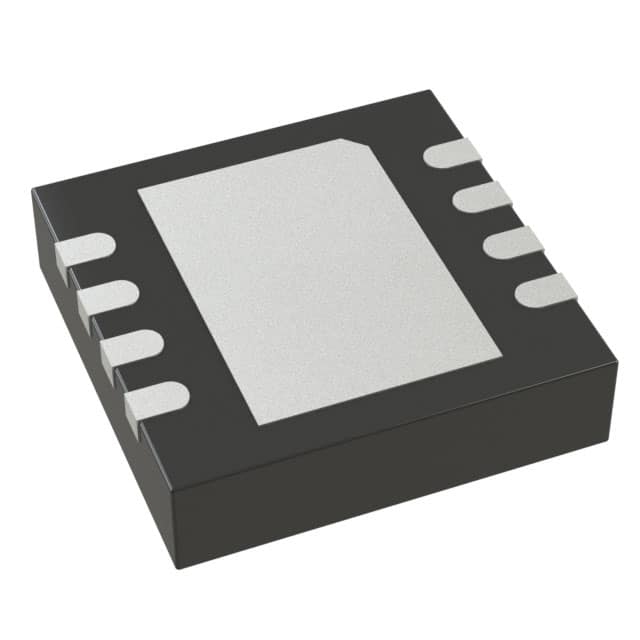

LTC2641CDD-14#TRPBF
IC DAC 14BIT V-OUT 8DFNManufacturer: Analog Devices Inc.
Categories: Digital to Analog Converters (DAC)
Quality Control: Learn More
The Analog Devices Inc. LTC2641CDD-14-TRPBF is a 14-bit, single-channel voltage-output digital-to-analog converter. Featuring an R-2R architecture, this component offers ±0.5 LSB INL/DNL specifications for precise conversion. Data is interfaced via an SPI protocol. The device operates with analog and digital supply voltages ranging from 2.7V to 5.5V and has a typical settling time of 1µs. It is housed in an 8-DFN (3x3) package with exposed pad for surface mounting and utilizes an external reference. The unbuffered voltage output is suitable for various applications including industrial automation, medical instrumentation, and consumer electronics. Operating temperature range is 0°C to 70°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-WFDFN Exposed Pad |
| Output Type | Voltage - Unbuffered |
| Mounting Type | Surface Mount |
| Number of Bits | 14 |
| Data Interface | SPI |
| Reference Type | External |
| Operating Temperature | 0°C ~ 70°C |
| Voltage - Supply, Analog | 2.7V ~ 5.5V |
| Voltage - Supply, Digital | 2.7V ~ 5.5V |
| Settling Time | 1µs (Typ) |
| Supplier Device Package | 8-DFN (3x3) |
| Architecture | R-2R |
| Number of D/A Converters | 1 |
| INL/DNL (LSB) | ±0.5, ±0.5 |
| Differential Output | No |
| Programmable | Not Verified |
