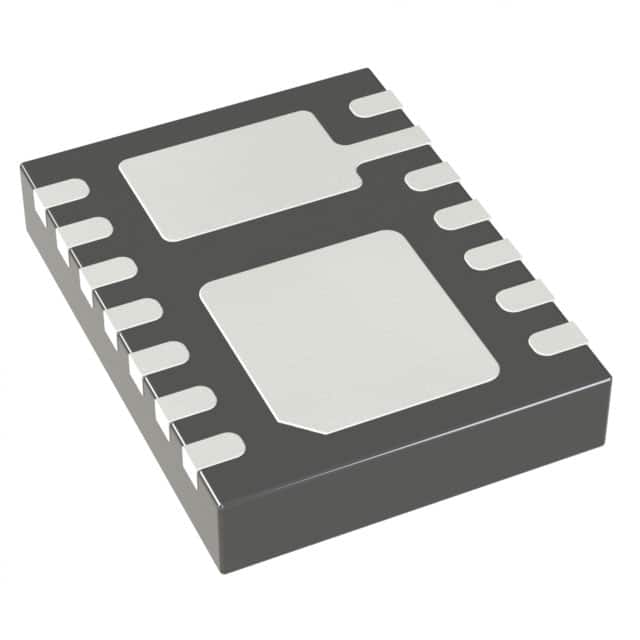

LTC2637HDE-LZ8#PBF
IC DAC 8BIT V-OUT 14DFNManufacturer: Analog Devices Inc.
Categories: Digital to Analog Converters (DAC)
Quality Control: Learn More
8 Bit Digital to Analog Converter 8 14-DFN (4x3)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 14-WFDFN Exposed Pad |
| Output Type | Voltage - Buffered |
| Mounting Type | Surface Mount |
| Number of Bits | 8 |
| Data Interface | I2C |
| Reference Type | External, Internal |
| Operating Temperature | -40°C ~ 125°C |
| Voltage - Supply, Analog | 2.7V ~ 5.5V |
| Voltage - Supply, Digital | 2.7V ~ 5.5V |
| Settling Time | 3.5µs (Typ) |
| Supplier Device Package | 14-DFN (4x3) |
| Architecture | - |
| Number of D/A Converters | 8 |
| INL/DNL (LSB) | ±0.05, ±0.5 (Max) |
| Differential Output | No |
| Programmable | Not Verified |
