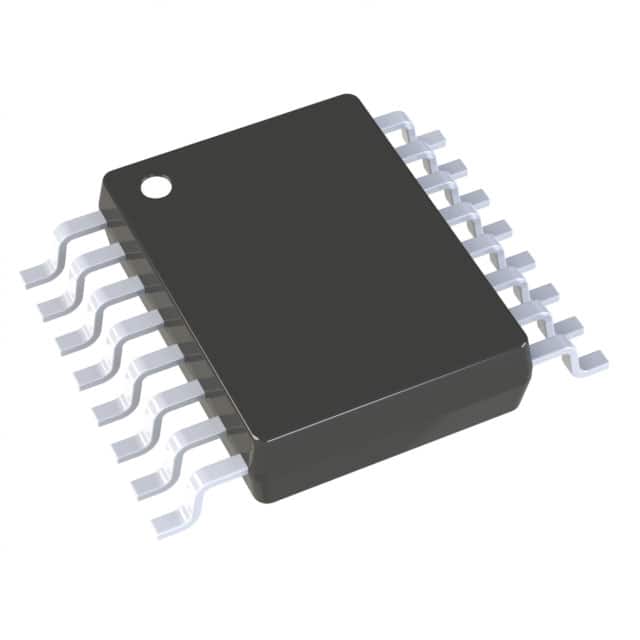

LTC2636IMS-HMX12#PBF
IC DAC 12BIT V-OUT 16MSOPManufacturer: Analog Devices Inc.
Categories: Digital to Analog Converters (DAC)
Quality Control: Learn More
The Analog Devices Inc. LTC2636IMS-HMX12-PBF is an octal, 12-bit voltage-output digital-to-analog converter (DAC). This component features an SPI data interface for efficient communication and offers a voltage output that is buffered for direct application. With a tight integral nonlinearity (INL) and differential nonlinearity (DNL) of ±1 LSB maximum, it ensures high precision in conversion. The LTC2636IMS-HMX12-PBF operates across a temperature range of -40°C to 85°C and supports both external and internal reference types. Its typical settling time is 4.8µs. The device is supplied in a 16-MSOP package, designed for surface mounting, and is available in tube packaging. This DAC is suitable for applications in industrial automation, instrumentation, and consumer electronics requiring precise analog signal generation.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 39 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 16-TFSOP (0.118"", 3.00mm Width) |
| Output Type | Voltage - Buffered |
| Mounting Type | Surface Mount |
| Number of Bits | 12 |
| Data Interface | SPI |
| Reference Type | External, Internal |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 5V |
| Settling Time | 4.8µs (Typ) |
| Supplier Device Package | 16-MSOP |
| Architecture | - |
| Number of D/A Converters | 8 |
| INL/DNL (LSB) | ±1, ±1 (Max) |
| Differential Output | No |
| Programmable | Not Verified |
