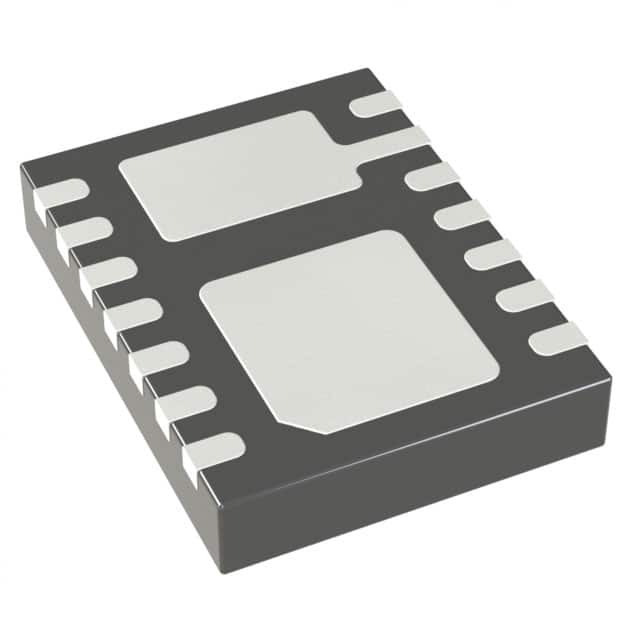

LTC2636IDE-LMX10#PBF
IC DAC 10BIT V-OUT 14DFNManufacturer: Analog Devices Inc.
Categories: Digital to Analog Converters (DAC)
Quality Control: Learn More
Analog Devices Inc. presents the LTC2636IDE-LMX10-PBF, an octal 10-bit voltage-output digital-to-analog converter. This device features a compact 14-DFN (4x3) package with an exposed pad, facilitating efficient thermal management. Its SPI interface enables straightforward integration into embedded systems. The LTC2636IDE-LMX10-PBF offers a voltage output that is internally buffered, simplifying output stage design. With a ±0.2 LSB INL and ±0.5 LSB DNL maximum error, it provides precise conversion accuracy. The device operates across a wide analog and digital supply voltage range of 2.7V to 5.5V and functions reliably within an ambient temperature range of -40°C to 85°C. Typcial settling time for this component is 4µs. This DAC is well-suited for applications in industrial control, instrumentation, and consumer electronics requiring high-resolution analog signal generation.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 20 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 14-WFDFN Exposed Pad |
| Output Type | Voltage - Buffered |
| Mounting Type | Surface Mount |
| Number of Bits | 10 |
| Data Interface | SPI |
| Reference Type | External, Internal |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 2.7V ~ 5.5V |
| Voltage - Supply, Digital | 2.7V ~ 5.5V |
| Settling Time | 4µs (Typ) |
| Supplier Device Package | 14-DFN (4x3) |
| Architecture | - |
| Number of D/A Converters | 8 |
| INL/DNL (LSB) | ±0.2, ±0.5 (Max) |
| Differential Output | No |
| Programmable | Not Verified |
