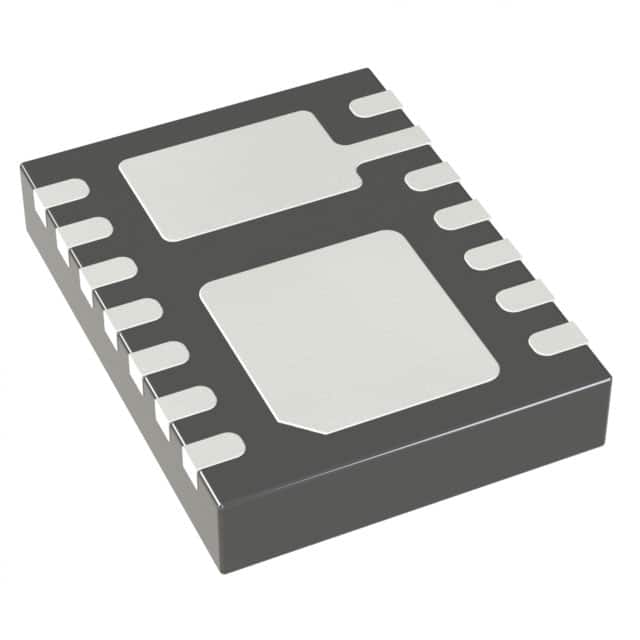

LTC2636HDE-LZ10#TRPBF
IC DAC 10BIT V-OUT 14DFNManufacturer: Analog Devices Inc.
Categories: Digital to Analog Converters (DAC)
Quality Control: Learn More
Analog Devices Inc. LTC2636HDE-LZ10-TRPBF is a 10-bit, 8-channel, voltage-output digital-to-analog converter (DAC). This device features an SPI interface for data communication and offers both internal and external reference options. The output is buffered, providing a stable voltage output. With a typical settling time of 4µs, the LTC2636HDE-LZ10-TRPBF exhibits excellent linearity, with maximum INL/DNL specifications of ±0.2 LSB and ±0.5 LSB, respectively. It operates over an extended temperature range of -40°C to 125°C and supports analog and digital supply voltages from 2.7V to 5.5V. The component is supplied in a 14-WFDFN exposed pad package, suitable for surface mounting. This DAC is commonly utilized in industrial automation, medical devices, and consumer electronics.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 13 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 14-WFDFN Exposed Pad |
| Output Type | Voltage - Buffered |
| Mounting Type | Surface Mount |
| Number of Bits | 10 |
| Data Interface | SPI |
| Reference Type | External, Internal |
| Operating Temperature | -40°C ~ 125°C |
| Voltage - Supply, Analog | 2.7V ~ 5.5V |
| Voltage - Supply, Digital | 2.7V ~ 5.5V |
| Settling Time | 4µs (Typ) |
| Supplier Device Package | 14-DFN (4x3) |
| Architecture | - |
| Number of D/A Converters | 8 |
| INL/DNL (LSB) | ±0.2, ±0.5 (Max) |
| Differential Output | No |
| Programmable | Not Verified |
