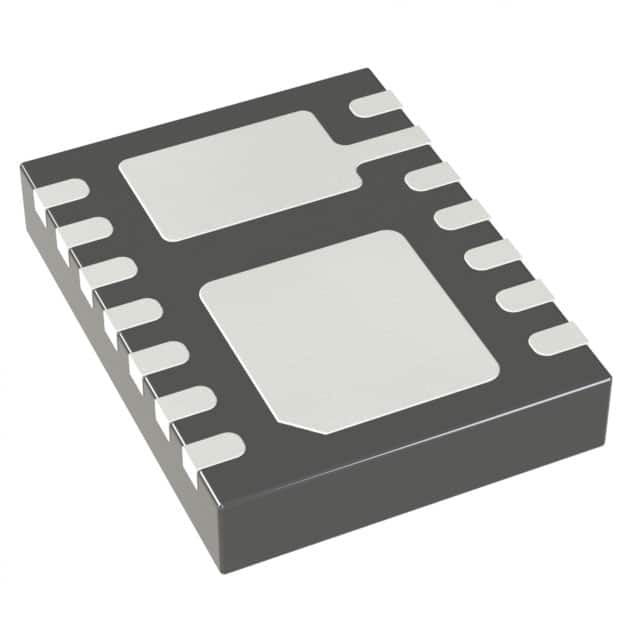

LTC2636HDE-LZ10#PBF
IC DAC 10BIT V-OUT 14DFNManufacturer: Analog Devices Inc.
Categories: Digital to Analog Converters (DAC)
Quality Control: Learn More
The Analog Devices Inc. LTC2636HDE-LZ10-PBF is a high-performance 10-bit, 8-channel digital-to-analog converter (DAC) featuring a voltage output. This component utilizes an SPI interface for seamless data communication and offers a buffered voltage output. Designed for demanding applications, it operates within a broad analog and digital supply voltage range of 2.7V to 5.5V. The device boasts excellent linearity specifications with a typical INL/DNL of ±0.2 LSB and ±0.5 LSB respectively. Its 4µs typical settling time makes it suitable for applications requiring rapid signal transitions. The LTC2636HDE-LZ10-PBF is housed in a compact 14-DFN (4x3) exposed pad package, enabling efficient surface mounting. It supports both internal and external voltage references and is rated for operation across an industrial temperature range of -40°C to 125°C. This DAC finds application in areas such as industrial automation, medical instrumentation, and consumer electronics.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 13 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 14-WFDFN Exposed Pad |
| Output Type | Voltage - Buffered |
| Mounting Type | Surface Mount |
| Number of Bits | 10 |
| Data Interface | SPI |
| Reference Type | External, Internal |
| Operating Temperature | -40°C ~ 125°C |
| Voltage - Supply, Analog | 2.7V ~ 5.5V |
| Voltage - Supply, Digital | 2.7V ~ 5.5V |
| Settling Time | 4µs (Typ) |
| Supplier Device Package | 14-DFN (4x3) |
| Architecture | - |
| Number of D/A Converters | 8 |
| INL/DNL (LSB) | ±0.2, ±0.5 (Max) |
| Differential Output | No |
| Programmable | Not Verified |
