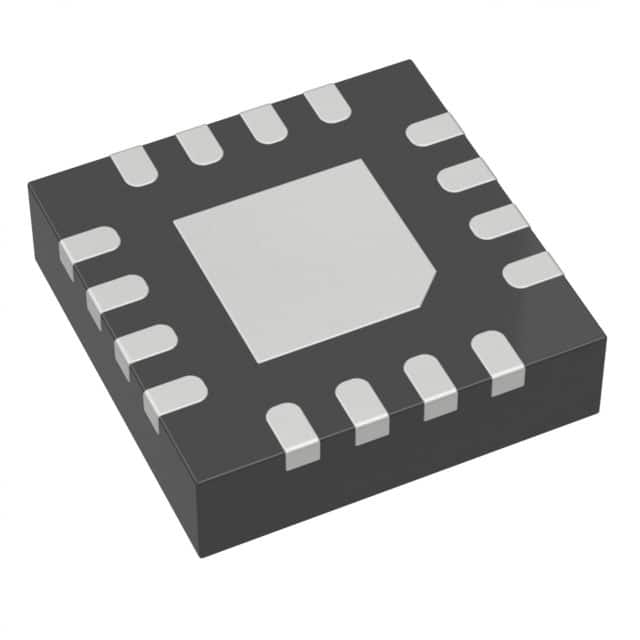

LTC2634HUD-HMX12#PBF
IC DAC 12BIT V-OUT 16QFNManufacturer: Analog Devices Inc.
Categories: Digital to Analog Converters (DAC)
Quality Control: Learn More
Analog Devices Inc. LTC2634HUD-HMX12-PBF is a 12-bit, octal, voltage-output digital-to-analog converter featuring a rail-to-rail output buffer. This component utilizes an SPI interface for data transfer, supporting a 5V analog and digital supply. It integrates four independent DACs within a compact 16-QFN (3x3) package, ideal for space-constrained applications. The device offers excellent linearity with a maximum INL/DNL of ±1 LSB and a typical settling time of 4.8µs. It supports both internal and external reference types and operates across a wide temperature range of -40°C to 125°C. Applications include industrial automation, consumer electronics, and test and measurement equipment.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 13 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 16-WFQFN Exposed Pad |
| Output Type | Voltage - Buffered |
| Mounting Type | Surface Mount |
| Number of Bits | 12 |
| Data Interface | SPI |
| Reference Type | External, Internal |
| Operating Temperature | -40°C ~ 125°C |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 5V |
| Settling Time | 4.8µs (Typ) |
| Supplier Device Package | 16-QFN (3x3) |
| Architecture | - |
| Number of D/A Converters | 4 |
| INL/DNL (LSB) | ±1, ±1 (Max) |
| Differential Output | No |
| Programmable | Not Verified |
