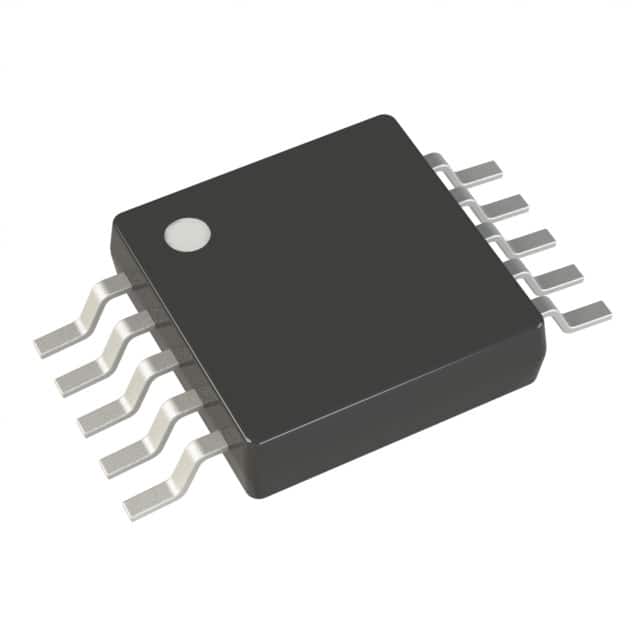

LTC2634HMSE-LMI12#TRPBF
IC DAC 12BIT V-OUT 10MSOPManufacturer: Analog Devices Inc.
Categories: Digital to Analog Converters (DAC)
Quality Control: Learn More
Analog Devices Inc. LTC2634HMSE-LMI12-TRPBF is a 12-bit, quad-channel, voltage-output digital-to-analog converter. This component features an integrated 2.5V, 10ppm/°C voltage reference, with an option for an external reference. The DACs are guaranteed monotonic with integral non-linearity (INL) and differential non-linearity (DNL) of ±1 LSB maximum. Data is communicated via a SPI interface, supporting clock speeds up to 50MHz. The output is buffered voltage and is not differential. Operating over an analog and digital supply range of 2.7V to 5.5V, this device exhibits a typical settling time of 4.2µs for a full-scale output change. It is housed in a 10-MSOP-EP package with an exposed pad and is suitable for surface mount assembly. The LTC2634HMSE-LMI12-TRPBF is designed for applications in industrial automation, instrumentation, and consumer electronics.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 10-TFSOP, 10-MSOP (0.118"", 3.00mm Width) Exposed Pad |
| Output Type | Voltage - Buffered |
| Mounting Type | Surface Mount |
| Number of Bits | 12 |
| Data Interface | SPI |
| Reference Type | External, Internal |
| Operating Temperature | -40°C ~ 125°C |
| Voltage - Supply, Analog | 2.7V ~ 5.5V |
| Voltage - Supply, Digital | 2.7V ~ 5.5V |
| Settling Time | 4.2µs (Typ) |
| Supplier Device Package | 10-MSOP-EP |
| Architecture | - |
| Number of D/A Converters | 4 |
| INL/DNL (LSB) | ±1, ±1 (Max) |
| Differential Output | No |
| Programmable | Not Verified |
