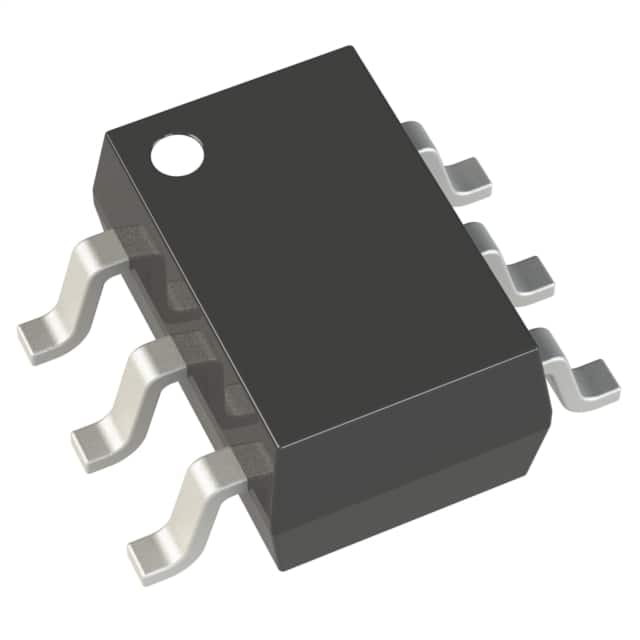

LTC2630AISC6-LZ12#TRPBF
IC DAC 12BIT V-OUT SC70-6Manufacturer: Analog Devices Inc.
Categories: Digital to Analog Converters (DAC)
Quality Control: Learn More
The Analog Devices Inc. LTC2630AISC6-LZ12-TRPBF is a 12-bit, single-channel voltage-output digital-to-analog converter. Featuring an SPI data interface, this component offers an internal voltage reference and a buffered output. It is supplied in a compact SC-70-6 package suitable for surface mounting. The device operates across an analog and digital supply voltage range of 2.7V to 5.5V, with a guaranteed INL/DNL of ±0.5 LSB and ±1 LSB respectively. Its typical settling time is 4.4µs. This DAC is designed for applications in consumer electronics, industrial control, and medical equipment.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 6-TSSOP, SC-88, SOT-363 |
| Output Type | Voltage - Buffered |
| Mounting Type | Surface Mount |
| Number of Bits | 12 |
| Data Interface | SPI |
| Reference Type | Internal, Supply |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 2.7V ~ 5.5V |
| Voltage - Supply, Digital | 2.7V ~ 5.5V |
| Settling Time | 4.4µs (Typ) |
| Supplier Device Package | SC-70-6 |
| Architecture | - |
| Number of D/A Converters | 1 |
| INL/DNL (LSB) | ±0.5, ±1 (Max) |
| Differential Output | No |
| Programmable | Not Verified |
