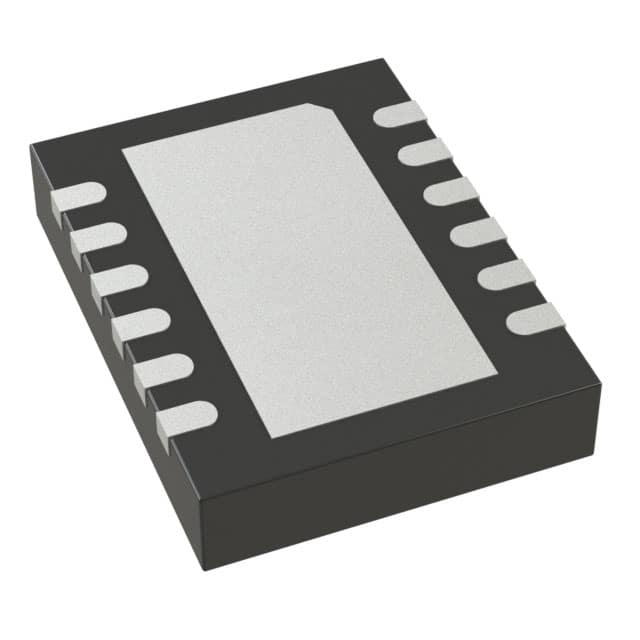

LTC2617IDE-1#TRPBF
IC DAC 14BIT V-OUT 12DFNManufacturer: Analog Devices Inc.
Categories: Digital to Analog Converters (DAC)
Quality Control: Learn More
The Analog Devices Inc. LTC2617IDE-1-TRPBF is a 14-bit, dual-channel voltage-output digital-to-analog converter. This component features an I2C data interface and operates across an analog and digital supply voltage range of 2.7V to 5.5V. The device offers a typical settling time of 9µs and exhibits excellent linearity with ±5 LSB INL and ±1 LSB DNL maximum error. Its output is voltage-buffered, and it requires an external reference. The LTC2617IDE-1-TRPBF is housed in a compact 12-DFN (4x3) package with an exposed pad, suitable for surface mount applications. This component finds utility in various industrial and consumer electronics applications requiring precise analog signal generation.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 12-WFDFN Exposed Pad |
| Output Type | Voltage - Buffered |
| Mounting Type | Surface Mount |
| Number of Bits | 14 |
| Data Interface | I2C |
| Reference Type | External |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 2.7V ~ 5.5V |
| Voltage - Supply, Digital | 2.7V ~ 5.5V |
| Settling Time | 9µs (Typ) |
| Supplier Device Package | 12-DFN (4x3) |
| Architecture | - |
| Number of D/A Converters | 2 |
| INL/DNL (LSB) | ±5, ±1 (Max) |
| Differential Output | No |
| Programmable | Not Verified |
