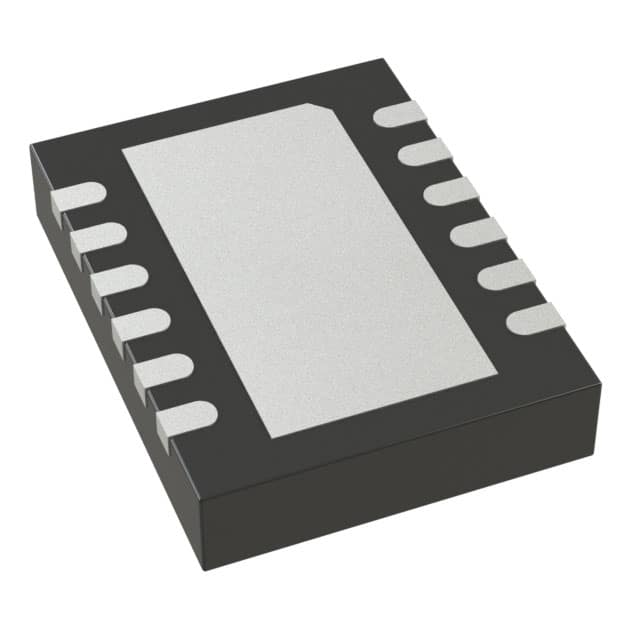

LTC2607IDE-1#TRPBF
IC DAC 16BIT V-OUT 12DFNManufacturer: Analog Devices Inc.
Categories: Digital to Analog Converters (DAC)
Quality Control: Learn More
The Analog Devices Inc. LTC2607IDE-1-TRPBF is a dual 16-bit voltage-output digital-to-analog converter. This component features an I2C data interface and a 12-WFDFN exposed pad package with a 4x3mm footprint. It offers a wide analog and digital supply voltage range of 2.7V to 5.5V. The output is voltage-buffered and utilizes an external reference. Key performance specifications include a maximum INL/DNL of ±19 LSB and ±1 LSB, respectively, and a typical settling time of 10µs. This device is suitable for applications requiring precise analog signal generation, including industrial automation, test and measurement equipment, and consumer electronics. The part is supplied in Tape & Reel packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 12-WFDFN Exposed Pad |
| Output Type | Voltage - Buffered |
| Mounting Type | Surface Mount |
| Number of Bits | 16 |
| Data Interface | I2C |
| Reference Type | External |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 2.7V ~ 5.5V |
| Voltage - Supply, Digital | 2.7V ~ 5.5V |
| Settling Time | 10µs (Typ) |
| Supplier Device Package | 12-DFN (4x3) |
| Architecture | - |
| Number of D/A Converters | 2 |
| INL/DNL (LSB) | ±19, ±1 (Max) |
| Differential Output | No |
| Programmable | Not Verified |
