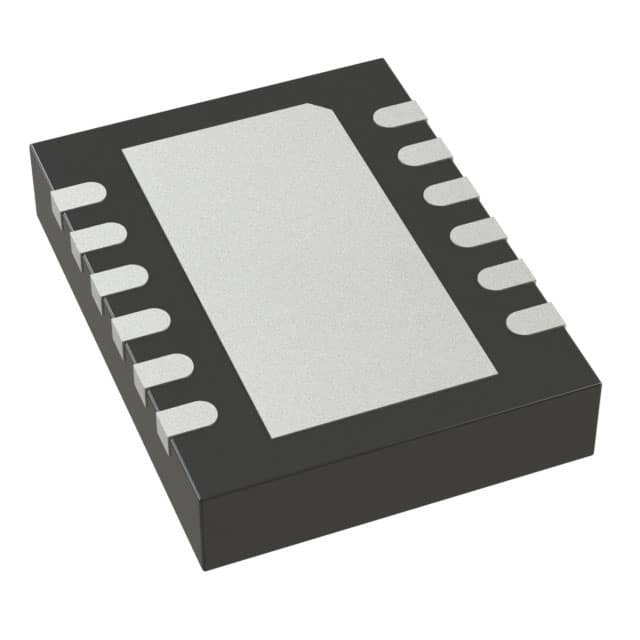

LTC2607CDE#TRPBF
IC DAC 16BIT V-OUT 12DFNManufacturer: Analog Devices Inc.
Categories: Digital to Analog Converters (DAC)
Quality Control: Learn More
The Analog Devices Inc. LTC2607CDE-TRPBF is a 16-bit, dual-channel voltage-output digital-to-analog converter. This component features an I2C data interface and a voltage-buffered output. It offers excellent linearity with a maximum INL/DNL of ±19 LSB and ±1 LSB, respectively. The LTC2607CDE-TRPBF operates with analog and digital supply voltages ranging from 2.7V to 5.5V. Its 12-WFDFN exposed pad package (4x3mm) is designed for surface mounting and is supplied on a tape and reel. With a typical settling time of 10µs and an external reference type, this DAC is suitable for applications in industrial automation, medical devices, and consumer electronics where high-resolution analog signal generation is critical.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 12-WFDFN Exposed Pad |
| Output Type | Voltage - Buffered |
| Mounting Type | Surface Mount |
| Number of Bits | 16 |
| Data Interface | I2C |
| Reference Type | External |
| Operating Temperature | 0°C ~ 70°C |
| Voltage - Supply, Analog | 2.7V ~ 5.5V |
| Voltage - Supply, Digital | 2.7V ~ 5.5V |
| Settling Time | 10µs (Typ) |
| Supplier Device Package | 12-DFN (4x3) |
| Architecture | - |
| Number of D/A Converters | 2 |
| INL/DNL (LSB) | ±19, ±1 (Max) |
| Differential Output | No |
| Programmable | Not Verified |
